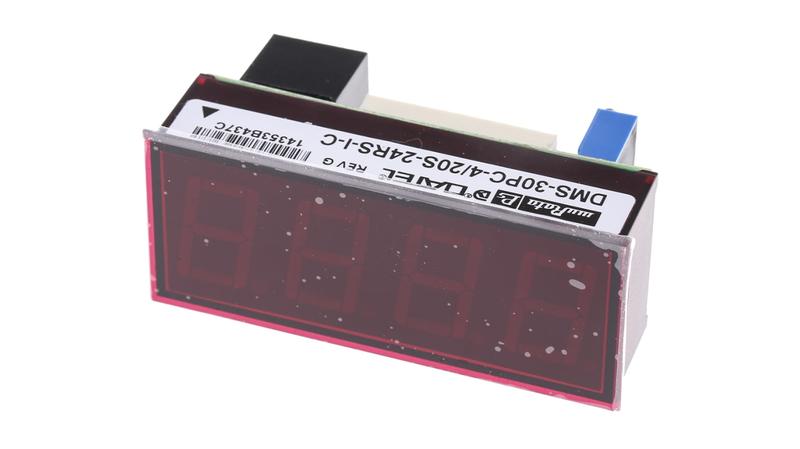

DMS-30PC-4/20S-24RS-I-C Murata LED Digital Panel Multi-Function Meter for Current, 22.3mm x 53.8mm

DMS-30PC-4/20S - Digital Panel 4-20mA Meter_x000D_ The DMS-30PC-4/20S series of 4-20 mA current-loop-input, 3.5 digit, LED display panel meters offer an outstanding combination of electrical performance, display readability, ease-of-use, and long-term reliability._x000D_ Gain (span) and offset (zero) adjustments are both performed with high-precision, 20-turn potentiometers. All decimal point and range-change settings are made on a DIP switch. Connections to the current loop and the power source are both made on a rugged, four-position, screw-type terminal block._x000D_ The DMS-30PC-4/20S's user-friendly design accommodates virtually hundreds of different input-current/output-reading combinations. This eliminates the majority of requirements for more costly, long-lead-time, factory "specials", especially in applications requiring several different-range meters._x000D_ Digital 4-20 mA meter with 3.5 digit display_x000D_ Large 14.2 mm red LED display_x000D_ 24 Vdc isolated-power supply_x000D_ 100 Ω impedance, 2 V loop drop_x000D_ DIP-switch selectable range and decimal points_x000D_ High precision, 20-turn, gain/span and zero/offset adjust potentiometers_x000D_ Reliable screw-terminal input connections_x000D_ Vibration-resistant package_x000D_ Miniature size with 55x23x27 mm_x000D_ Murata Power Solutions Series
