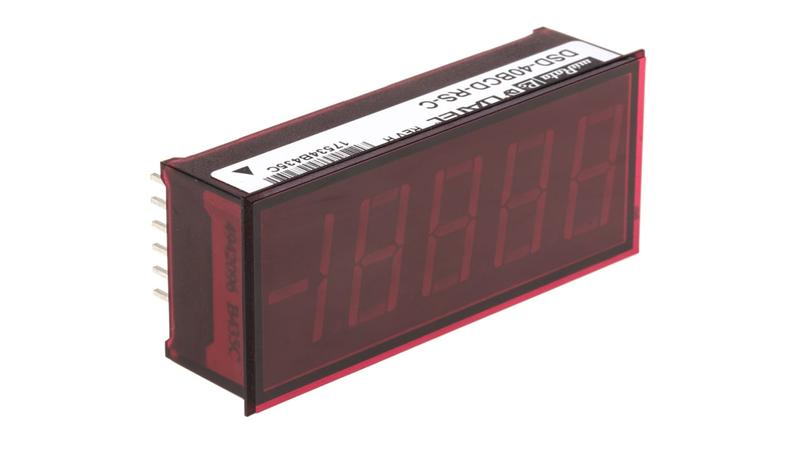

DSD-40BCD-RS-C Murata LED Digital Panel Multi-Function Meter for Current, Voltage, 22.3mm x 53.8mm

DSD-40BCD - BCD Input, Slave LED Display_x000D_ The DSD-40BCD digital slave display combines a full-size 4.5 digit LED display with all the other necessary components, including a built-in, contrast-enhancing filter/bezel, to implement a pc-board mountable instrument display._x000D_ The flexible design gives the user full control of all major display functions including display update rate, number of digits enabled, and decimal point selection. Its TTL-compatible inputs interface directly with most BCD output, integrating analog-to-digital converters, no additional glue logic is required._x000D_ When used with sophisticated microcomputers, the brightness of any digit can be independently controlled by simply lowering the digit-drive input duty cycle._x000D_ Digital slave display, BCD input, with 4.5 digit display_x000D_ Large 13.2 mm LED display_x000D_ Choice of red or green LED_x000D_ Single +5 V power supply (175 mW)_x000D_ Epoxy-encapsulated in a 24-pin package_x000D_ Minus sign and decimal points included_x000D_ No external components required_x000D_ PC-board or panel mountable_x000D_ Ideal for computer-based instruments_x000D_ Miniature size with 55x23x14 mm_x000D_ Murata Power Solutions Series
