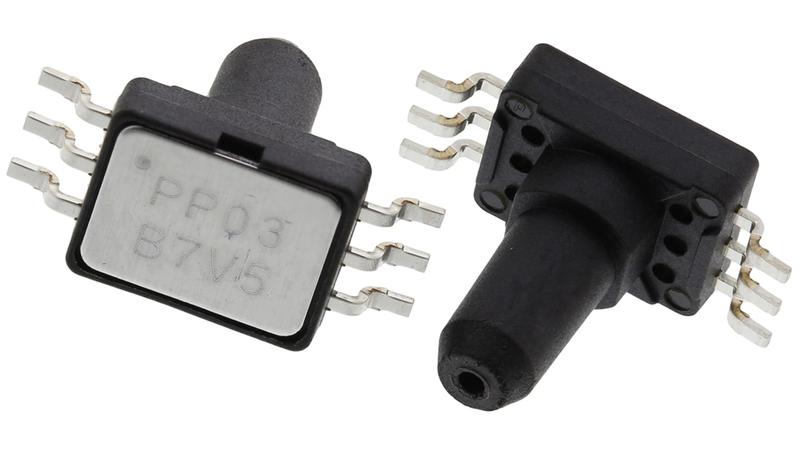

2SMPP-03 Omron Pressure Sensor, -50kPa Min, 50kPa Max, Amplified Output, Relative Reading

Pressure Sensors, Omron_x000D_ Solid state MEMS Pressure Sensors utilising piezo-resistive elements to provide superior electrical performance when compared to capacitive element types. They feature low power consumption and ultra-compact dimension, with good linearity and low temperature drift._x000D_ The Omron Electronic Components a 2SMPP-03 is a solid state MEMS Pressure Sensors utilising piezo-resistive elements to provide superior electrical performance when compared to capacitive element types. They feature low power consumption and ultra-compact dimension, with good linearity and low temperature drift._x000D_ Superior electrical characteristics_x000D_ at -50 kPa to 50 kPa pressure range._x000D_ Offset voltage of -2.5±4.0 mV_x000D_ Span voltage of 42.0±5.5 mV_x000D_ (At rated pressure 50 kPa, 100 μADC Current supply)_x000D_ Small package 6.1 ´ 4.7 ´ 8.2 mm (L ´ W ´ H)._x000D_ Good temperature dependency_x000D_ at 0 to 85°C, at rated pressure 0 to 50 kPa_x000D_ Temp. influence of span of ±3.0%FS_x000D_ Temp. influence of offset of ±5.0%FS_x000D_ (100 μADC Current supply)_x000D_ Rated power consumption of 0.2 mW_x000D_ Pressure Sensors, Omron
