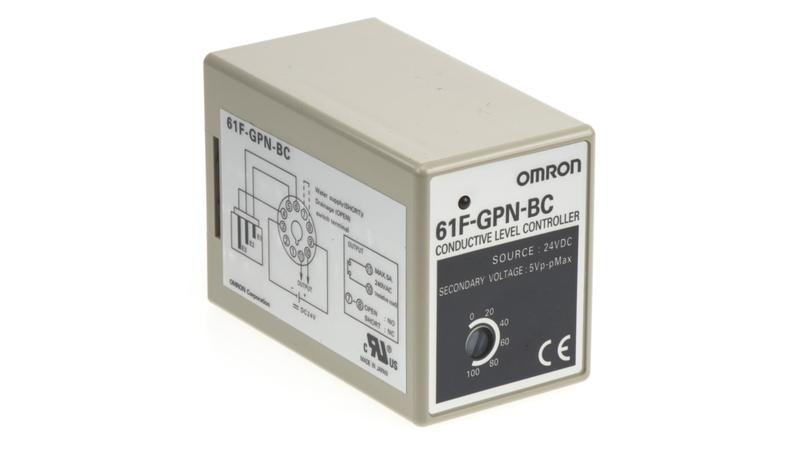

61F-GPN-BC 24VDC Omron Level Controller - DIN Rail, 24 V dc

Omron Level Controller_x000D_ The Omron conductive level controller is a 24VDC and DIN rail mount device. This controller combines a DC power supply with AC sensing circuitry. The battery (24VDC) allows use in locations without AC power supply. AC sine-wave voltage between electrodes enables stable detection with no electric corrosion. Outputs can be set to self-hold at ON or OFF using special circuits. The liquid level relays are used to monitor the levels of conductive liquids and are available in Up/Down, Minimum, Maximum and Fill/Empty variations. Liquid level relays are straightforward to install and safe to use._x000D_ Features and Benefits_x000D_ Supports multi-channel sensing_x000D_ AC sine-wave voltage for electrodes enables stable detection with no electric corrosion_x000D_ Adjustable sensitivity, with an operating resistance range of 0kohm to 100kohm, allows use in wide variety of liquids_x000D_ Transistor open-collector output version can be directly connected to PLC input_x000D_ Relay contact chatter conventionally caused by waves can be avoided by using transistor output version_x000D_ Same wiring for supply and drainage_x000D_ Inter electrode voltage is 5VAC maximum_x000D_ Release resistance is 200% maximum of the operation resistance_x000D_ Applications_x000D_ Monitoring and control of liquid levels_x000D_ Protection of pumps against dry running_x000D_ Ability to detect liquid leaks in a systems_x000D_ Control of media mixing ratios_x000D_ Control of liquid levels_x000D_ Certifications_x000D_ CE certified_x000D_ UL approved
