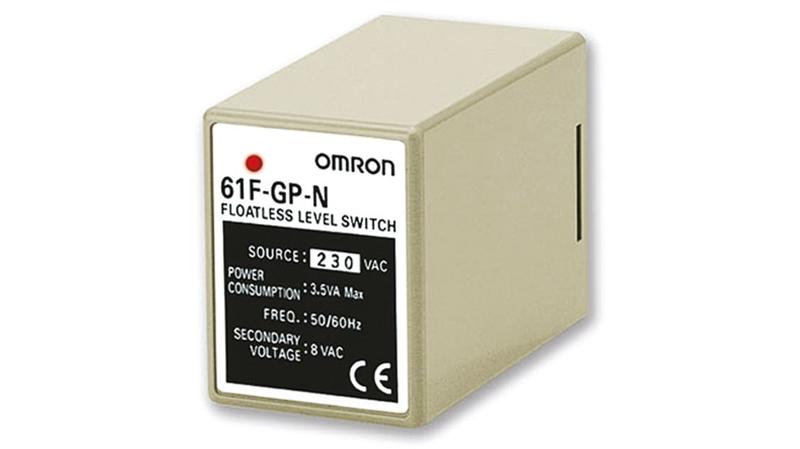

61FGPN2230AC Omron Conductive Level Controller - DIN Rail, 230 V ac 1

Omron Level Controller_x000D_ The Omron compact plug-in conductive level controller is a single input and DIN rail mount device. The single-level control is relay de-energises when the liquid level drops below the set level electrode and two-point level control is relay de-energises when the liquid level drops below the low-level electrode and energises when the level reaches the high-level electrode. It requires a 230VAC power supply. The liquid level relay reused to monitor the levels of conductive liquids and are available in Up/Down, Minimum, Maximum and Fill/Empty variations. Liquid level relays are straightforward to install and safe to use._x000D_ Features and Benefits_x000D_ Inter electrode voltage is 8VAC_x000D_ Power consumption approximately is 3.5VA maximum_x000D_ Operating resistance is 4kohm ON_x000D_ Ideal for level control of any conductive liquid_x000D_ Easy installation on DIN rail_x000D_ Low voltage (AC) electrodes_x000D_ Full surge protection_x000D_ Response time Operate: 80ms max and Release: 160ms max._x000D_ Applications_x000D_ Monitoring and control of liquid levels_x000D_ Protection of pumps against dry running_x000D_ Ability to detect liquid leaks in a systems_x000D_ Control of media mixing ratios_x000D_ Control of liquid levels_x000D_ Certifications_x000D_ UL approved_x000D_ CSA certified
