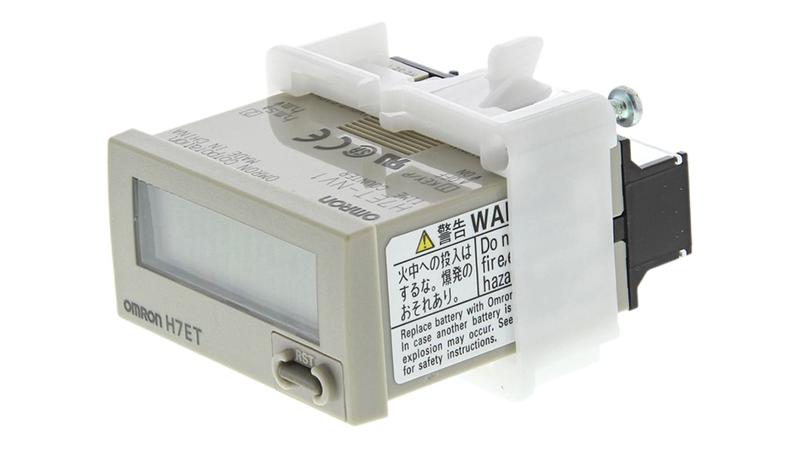

H7ET-NV1 Omron H7E Counter, 7 Digit, 4.5 → 30 V dc

Electronic timer for 24 x 48 panel mounting, H7ET Series_x000D_ Large totaliser display with 8.6-mm high digits and backlighting options_x000D_ Available with black or beige casing_x000D_ 24 ´ 48 mm DIN casing_x000D_ Timers with 7-digit LCD display_x000D_ Available with PNP/NPN universal DC voltage inputs_x000D_ Self-powered by internal battery, which provides continuous use for approximately seven years and_x000D_ can also be replaced_x000D_ Key-protected switch to avoid accidental reset of the switch_x000D_ Two operating modes_x000D_ IP66 protection on front panel_x000D_ Short body, just 48.5 mm long_x000D_ Handling protection_x000D_ Conforms to EMC EN50082-2, EN50081-1 standards for commercial,_x000D_ residential and light industry uses_x000D_ Dimension: Width 48 mm, Height 24 mm, Depth 48.5 mm, (aperture 45 x 22.5 mm)_x000D_ Omron Panel Mounting 24 x 48_x000D_ All units are resettable. Panel cut out is 22 x 45 with the front fascia sealed to IP65 and has an operating temperature range of -10 to +55°C
