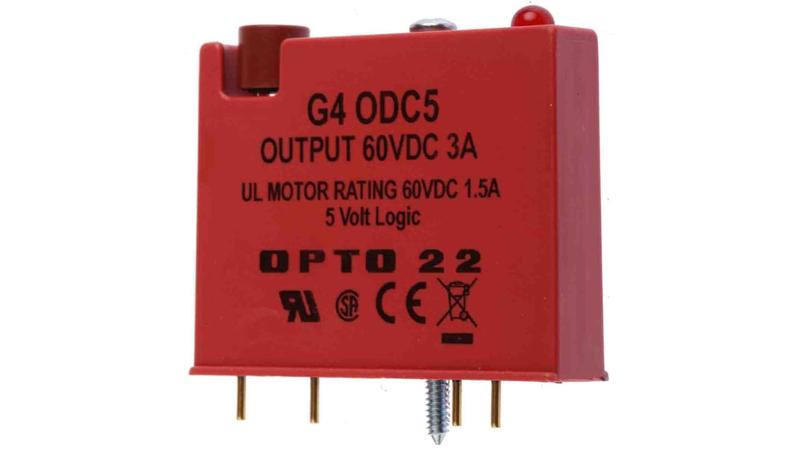

G4ODC5 Opto 22 PLC I/O Module, 48.8 x 12.2 x 41.1 mm, DC Digital, Digital DC Voltage, AXL F DI8/2 110/220DC 1F, 5 → 60

Opto 22 PLC I/O Module_x000D_ The Opto 22 G4 series digital DC output module has an output voltage that ranges between 5VDC and 60 VDC with an output current of 3A. It is compatible with Opto 22 brains and with a Raspberry Pi. This output module is used to control or switch DC loads. Each module provides up to 4000volts of optical isolation (transient) between field devices and control logic._x000D_ Features and Benefits_x000D_ Built-in LED status indicator_x000D_ Logic levels of 5VDC, 15VDC and 24VDC_x000D_ Removable fuse_x000D_ Ability to withstand one-second surge of 5 amps_x000D_ Operating temperature ranges between 30°C and 70°C_x000D_ Applications_x000D_ DC relays_x000D_ Solenoids_x000D_ Motor starters_x000D_ Lamps and indicators_x000D_ Certifications_x000D_ UL approved_x000D_ CSA certified_x000D_ CE_x000D_ Passes NEMA Showering Arc Test (ICS 2-230)_x000D_ Meets IEEE Surge Withstand Specification (IEEE-472)
