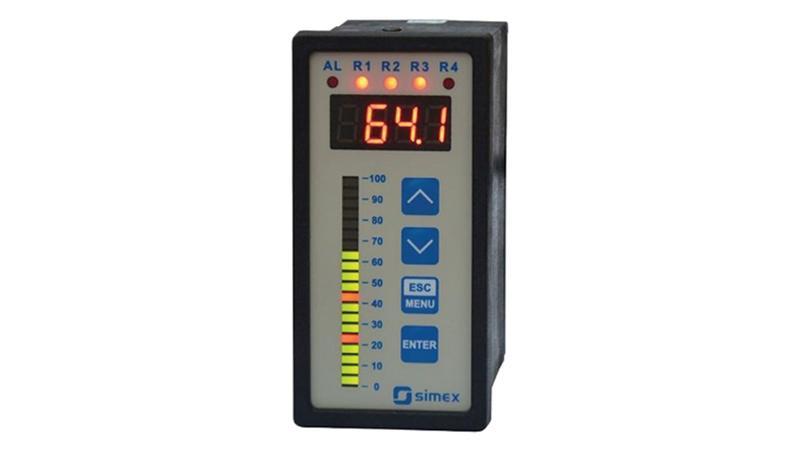

SRL-49-1841-1-4-001 Simex LED Digital Panel Multi-Function Meter for Current, Voltage, 90.5mm x 43mm

SRL-49 Bar Graph Meter_x000D_ The SRL-49 is a bar graph meter designed for measuring typical current or voltage signals. The readout of these signals is presented on a four-decade LED display and a 20-point, two-colour bar graph. The output on this meter is designed to supply measuring transducers and the RS485 port enables data transmission in production process monitoring systems._x000D_ The features of this bar graph make it a popular choice for various process control systems._x000D_ • 4-digit (9 mm) LED display_x000D_ • Analogue output- active or passive_x000D_ • 0/4-20 m A, 0/1-5 V, 0/2-10 V inputs_x000D_ • Wide range of characteristic curves- linear, square root, quadratic, user-defined and volume characteristic for cylindrical tanks_x000D_ • RS485/Modbus RTU communication interface_x000D_ • Configuration with local keyboard or free S-Config software via RS485 port_x000D_ • Signal peak value detection_x000D_ • Free configuration software S-Config_x000D_ • 230 V ac power supply_x000D_ Simex Multi function Meters
