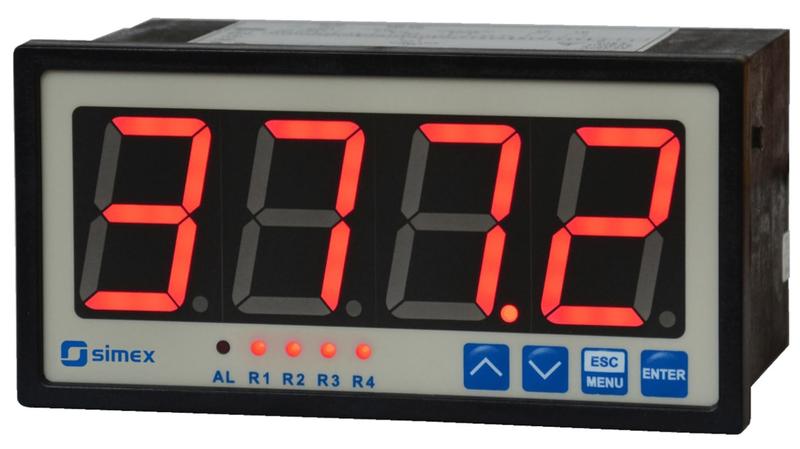

SRP-147 24VDC Simex SRP-147 LED Process Meter for 0→10 V, 67mm x 137mm

SRP-147 Process Meter_x000D_ The SRP-147 process meter is designed for measuring typical current or voltage signals. One of the main features of this meter is the large 38 mm high LED display. The output on this meter is designed to supply measuring transducers and the RS485 port enables data transmission in production process monitoring systems._x000D_ • Large 4-digit (38 mm) LED display_x000D_ • Analogue output- active or passive_x000D_ • 0/4-20 mA, 0/1-5 V, 0/2-10 V, 0-60/75/100/150 mV inputs_x000D_ • Wide range of characteristic curves- linear, square root, quadratic, user-defined and volume characteristic for cylindrical tanks_x000D_ • RS485/Modbus RTU communication port_x000D_ • Configuration with local keyboard or free S-Config software via RS485 port_x000D_ • Signal peak value detection_x000D_ • Free configuration software S-Config_x000D_ Simex Multi function Meters
