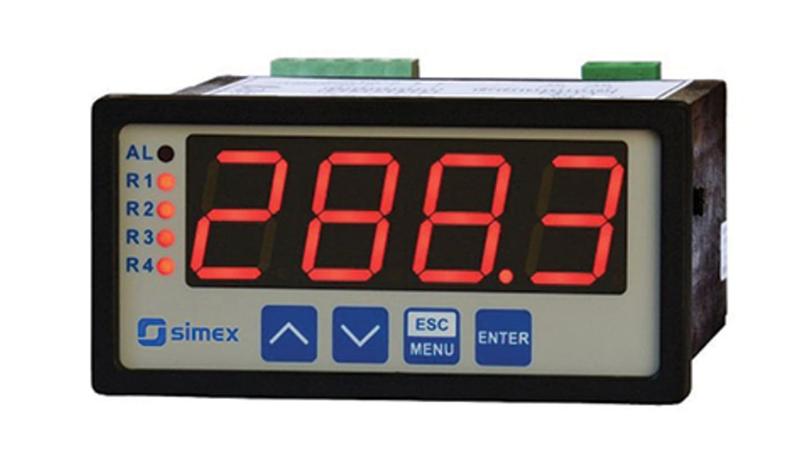

SUR-94-1J21-1-4-001 Simex LED Digital Panel Multi-Function Meter, 43mm x 90.5mm

SUR-94 Universal Input Meter_x000D_ The SIMEX SUR-94 Digital panel meter with 20 mm digits and universal input._x000D_ The SUR-94 meter is equipped with one universal input as during the measurement process only one input type is available. Temperature of cold ends is compensated automatically and RTD/TC inputs are fully linearized._x000D_ Thanks to wide range of characteristic curves (linear, square root, quadratic, user-defined and volume characteristic for cylindrical tanks) the meters can be used in various process control systems._x000D_ The 24V dc/100 mA output is designed to supply measuring transducers, and the RS-485 port enables data transmission in production process monitoring systems._x000D_ • 4-digit (20 mm) large, LED display_x000D_ • Universal input: 0/4-20 mA, 0-10 V, 0-150 mV, RTD or TC_x000D_ • 2 Relay outputs_x000D_ • Wide range of characteristic curves- linear, square root, quadratic, user-defined and volume characteristic for cylindrical tanks_x000D_ • Analogue output: active or passive power supply output: 24 V dc_x000D_ • RS485/Modbus RTU communication interface_x000D_ • Configuration with local keyboard_x000D_ • Signal peak detection_x000D_ • Free configuration software S-Config_x000D_ • 230 V ac power supply_x000D_ Simex Multi function Meters
