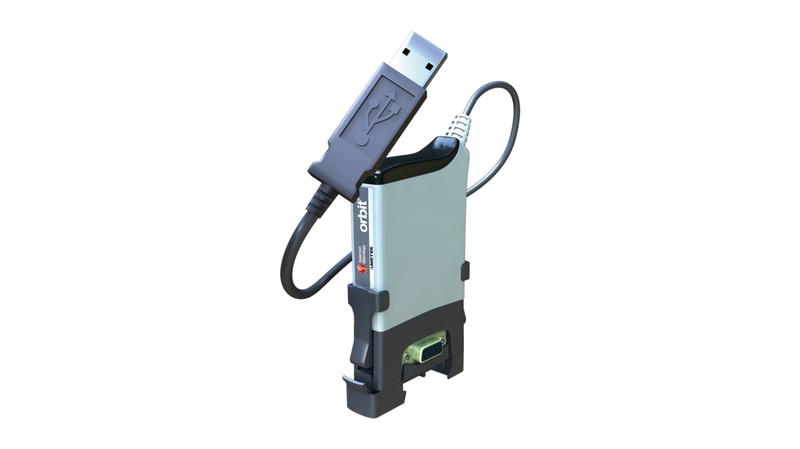

911470-3 Solartron Metrology Interface Unit

Orbit 3 Digital Measurement System_x000D_ The Orbit 3 digital measurement system provides users with a limitless set of measuring system solutions offering a variety of interfaces to computers and PLC’s. The Orbit 3 is completely flexible and high performing eliminating the need to use analogue transducers and amplifiers. When you calibrate the transducer and electronics together it produces a linear system across the full measurement range removing the need for expensive minimum and maximum gauging masters. This digital measurement system provides users with solutions for measurement applications including temperature, load cells, pressure sensors, linear displacement, structural monitoring and gauging._x000D_ Digital measurement system controllers:_x000D_ The USB controller can power up to 4 Orbit modules of most types. Some products may require additional power supply modules. Readings per second for up to 16 modules._x000D_ Connect to third party sensors:_x000D_ Orbit 3 modules also provide interfaces to other transducers and control processes. The flexible AIM (Analogue Input Module) can take inputs from any transducer with a voltage of current output. The EIM (Rotary) Encoder Input Module provides a route to angle information which can facilitate part profiling and the DIOM provides control inputs and outputs._x000D_ Power supply interface modules:_x000D_ These modules are uses to power a network of Orbit modules and sensors from an AC or DC power source. Most Solartron sensors and modules run on 5V, except Orbit LT and Orbit LTH which also require 24VDC. Some power supply interface modules can output both voltages._x000D_ The AC PSIM is supplied connected to a mains power module with the appropriate mains lead._x000D_ The DC PSIM is supplied with a standard 2 m cable._x000D_ 24V output of DC PSIM will track the DC input._x000D_ 24V current depends on external supply._x000D_ The Aux AC PSIM only supplies 24V auxiliary power for products that require additional 24V in addition to the standard 5V._x000D_ These PSIMs do not power the Orbit Network._x000D_ Excellent metrology performance_x000D_ High accuracy_x000D_ High resolution_x000D_ Excellent repeatability_x000D_ Excellent lifetime value_x000D_ Low maintenance costs_x000D_ wide range of campatible transducers_x000D_ Fast reading rates_x000D_ High data integrity_x000D_ Network up to 150 transducers with one interface_x000D_ Comminate with any computer or PLC_x000D_ Easy to set up range of software drivers and tolls.
