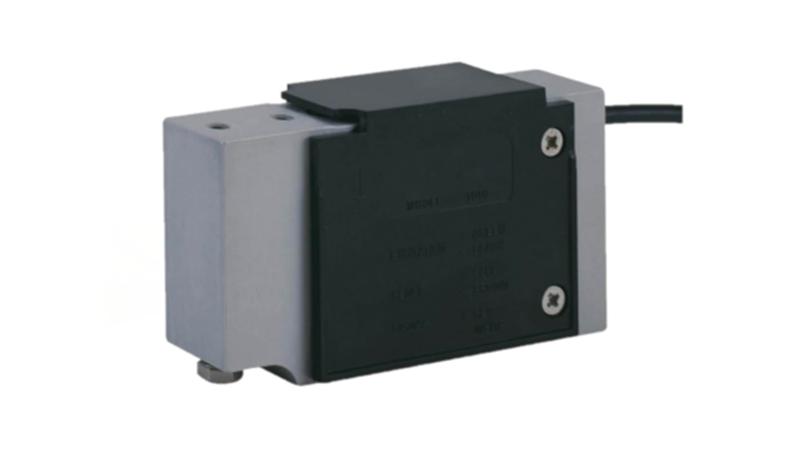

01015-005K-G0-57X Tedea Huntleigh Load Cell, 5kg Range, Compression Measure

Model 1015 is a single-point load cell designed for direct mounting of low cost, low capacity weighing platforms. Its use in large platforms, combined with its high accuracy and low cost, makes this load cell ideally suited for a large range of weighing applications, including bench scales and counting scales. A special humidity resistant protective coating is available which ensures long-term reliability. Model 1015’s built-in overload stop can provide mechanical protection against overloading. The two additional sense wires feed back the voltage reaching the load cell. Complete compensation of changes in lead resistance due to temperature change and/or cable extension is achieved by feeding this voltage into the appropriate electronics.Single point low capacity aluminium load cell._x000D_ Capacities 3–90 kg_x000D_ Aluminium construction_x000D_ Single-point 400 x 400 mm platform_x000D_ Applications_x000D_ Bench scales_x000D_ Counting scales_x000D_ Grocery scales
