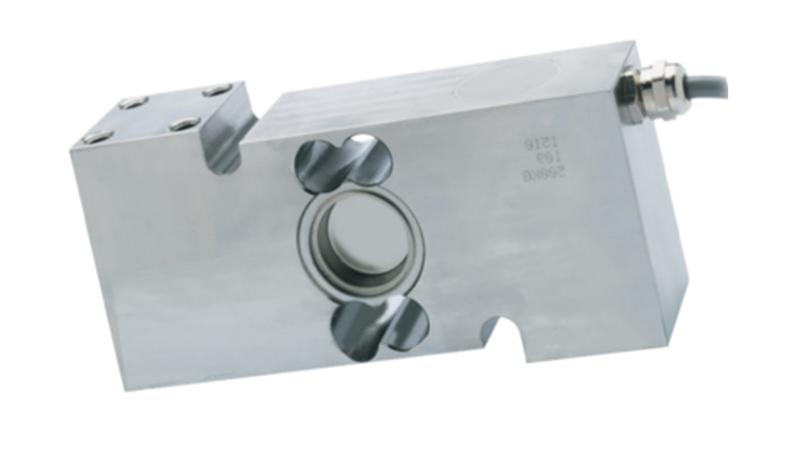

01510-100K-32-02X Tedea Huntleigh Load Cell, 100kg Range, Compression Measure

Model 1510 is a high accuracy single-point load cell ideally suited to industrial applications which undergo regular washdown, typically platforms, wall scales and other process weighing applications in the food industry. Hermetically sealed against moisture, the all welded construction of the 1510 in combination with a polyurethane dual shielded cable, enables continuous operation in harsh environments while maintaining a high operating specification. The two additional sense wires feed back the voltage reaching the load cell. Complete compensation of changes in lead resistance due to temperature change and/or cable extension, is achieved by feeding this voltage into the appropriate electronics._x000D_ Capacity range: 100–500 kg_x000D_ Stainless steel construction_x000D_ Single-point 600 x 600 mm platform_x000D_ Platform size 600 x 800 mm available_x000D_ Applications_x000D_ Food industry platforms_x000D_ Marine and hybrid scales_x000D_ Process weighing hoppers_x000D_ Harsh environment
