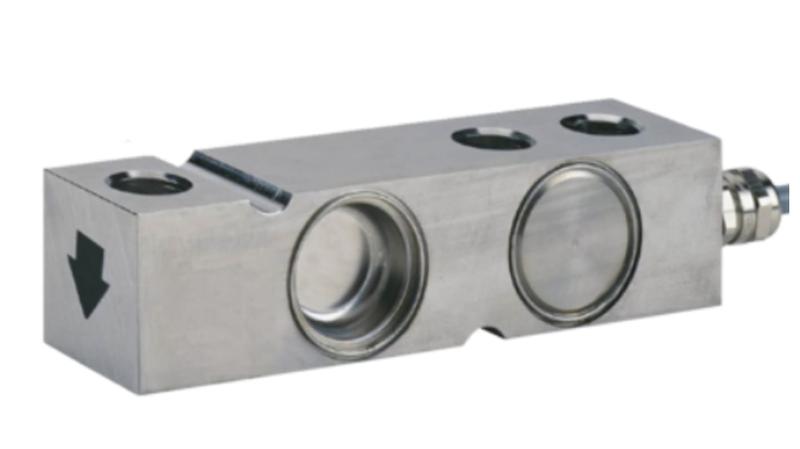

03510-500K-C3-90X Tedea Huntleigh Low Profile Load Cell, 500kg Range, Compression Measure

Model 3510 provides the weighing industry with the ultimate protection necessary for today’s hostile environments in an economical low profile range suitable for platform scale manufacture. Its low profile and all welded sealing combined with high accuracy makes this load cell ideally suited for low profile platforms, pallet truck weighers, tanks and silos. The guide slots incorporated into the upper and lower mounting faces enable manufacturers to easily position the load cell. Hermetically sealed against moisture, the construction of the Model 3510 in combination with a polyurethane dual shielded cable, enables continuous operation in harsh environments while maintaining a high operating specification. The two additional sense wires feed back the voltage reaching the load cell. Complete compensation of changes in lead resistance due to temperature change and/or cable extension, is achieved by feeding this voltage into the appropriate electronics._x000D_ Capacities 300–5000 kg, 1000–5000 lbs_x000D_ Stainless steel construction_x000D_ Hermetically sealed_x000D_ Specially designed for harsh environment_x000D_ Applications_x000D_ Low profile platforms_x000D_ Pallet truck weighing_x000D_ Tank and silo weighing_x000D_ Harsh environment weighing_x000D_ Food industry weighing
