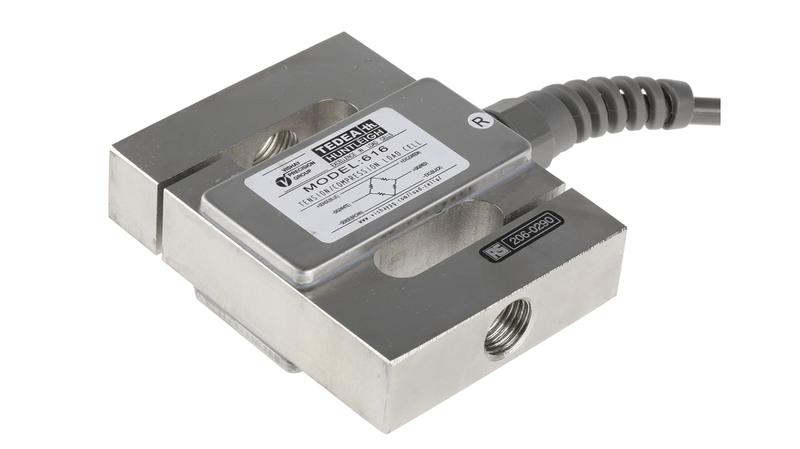

0616-0500-F000-RS Tedea Huntleigh Single Point Load Cell, 500kg Range, Compression, Tension Measure

Tedea Huntleigh Compression & Tension Load Cell "S" Beam Type 200/300kg_x000D_ Features and Benefits:_x000D_ Output impendence 350Ω_x000D_ Input Impedance 400 ±20Ω_x000D_ Safe overload 150% rated capacity_x000D_ Ultimate overload 300% rated capacity_x000D_ For use in tension and compression_x000D_ 6 wire (sense) circuit_x000D_ Bridge signal conditioners available separately_x000D_ For Output signal conditioners see (stock no. 455-5043)_x000D_ Dimensions 62 x 80 x 18mm_x000D_ The additional sense wires compensate for changes in lead resistance due to temperature changes and/or cable extension._x000D_ Typical Applications:_x000D_ Force measurement,_x000D_ material testing machines,_x000D_ conversion of mechanical scales to electronic,_x000D_ hanging scales, hoppers_x000D_ FAQs:_x000D_ What thread does it have?_x000D_ This is 1/2 Inch UNF_x000D_
