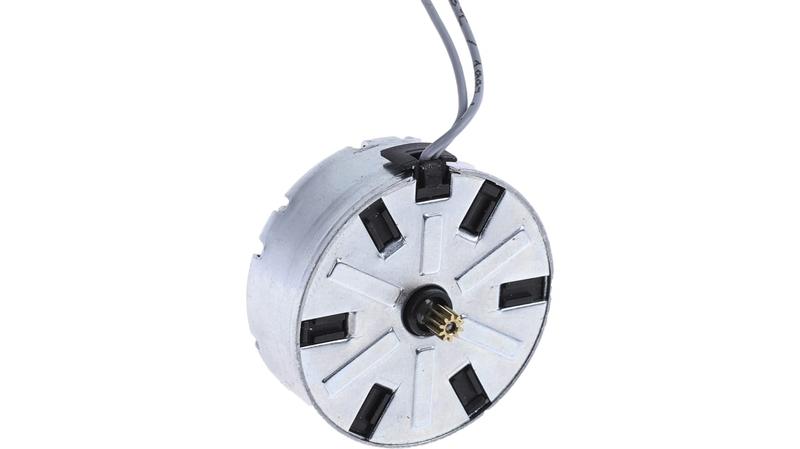

Synchronous Motor_x000D_
This drives the camshaft via the gearbox, and is coupled to the gears using a brass pinion on its shaft_x000D_
Coupled to the gearbox via a clip supplied with the gearbox housing_x000D_
19mm high (excl. pinion), 46mm diameter_x000D_
Motor speed; 500rpm_x000D_
Power consumption 2.5VA_x000D_
220mm lead length_x000D_
45°C (typ) temperature rise_x000D_
Supply Voltage: 230 V ac_x000D_
Speed: 50Hz (500rpm) or 60Hz (600rpm)_x000D_
Sequencers_x000D_
A cam sequencer can be assembled using a combination of an assembly frame (either strikers or screw adjustable), a knob and a gearbox. The striker versions are configured by moving pre-defined divisions in a similar manner to some mechanical time-switches.
