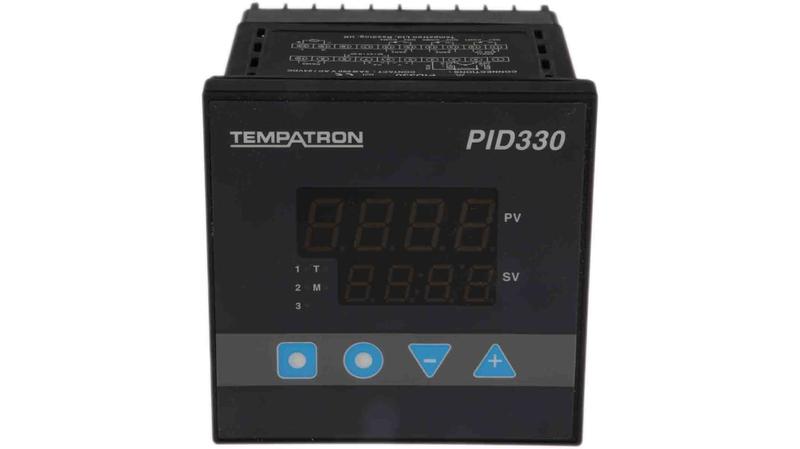

PID330MH-0000 Tempatron PID330 PID Temperature Controller, 96 x 96 (1/4 DIN)mm, 2 Output Relay, 85 → 270 V ac Supply Voltage

Tempatron Temperature Controller_x000D_ The Tempatron PID330 series temperature controller has a supply voltage rating ranging from 85VAC to 270VAC. This auto-tuning PID controller has a width of 96mm and a height of 96mm (1/4 DIN)device. It has selectable thermocouple, RTD or analogue inputs. The controller has two relay output. It has a large dual 4 digit LED display to show the setpoint and the process value._x000D_ Features and Benefits_x000D_ Dual display of set point and process value_x000D_ On demand auto tuning of PID parameters_x000D_ Programmable thermocouple, PT100, mV, 0V to10V or 0mA to 20mA inputs_x000D_ 1 or 2 on/off or PID control outputs_x000D_ Sensor break detection & error compensation_x000D_ Ambient temperature ranging between 0°C and 50°C, 85% RH non-condensing_x000D_ Resolution is 1//0.1ºC for thermocouples/RTDs_x000D_ 1//0.1/0.01/0.001 for analogue I/P_x000D_ Certifications_x000D_ CE certified (meets EN61010-1 low voltage and EN50081-1/50082-1 EMC directives)_x000D_ Case IP65 rated
