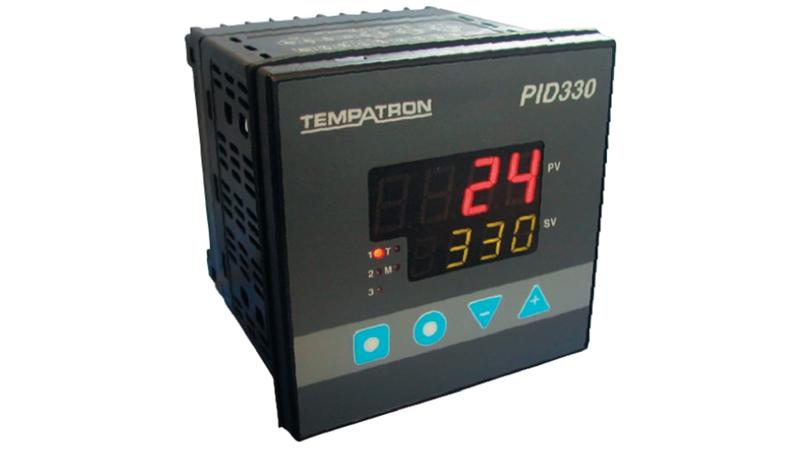

PID330ML-1000 Tempatron PID330 PID Temperature Controller, 96 x 96 (1/4 DIN)mm, 2 Output Relay, SSR, 24 V ac/dc Supply Voltage ON/OFF

1//4 DIN PID330 PID Temperature Controller_x000D_ The PID330 is a sophisticated auto-tuning PID controller housed in a 96mm x 96mm 1//4 DIN case. It has selectable thermocouple, RTD or analogue inputs. Relay or SSR plus relay output versions are available. ,It has a large dual 4 digit LED display to show the set point and the process value and is suitable for use with power supplies of 85 to 270Vac or 24Vac/dc._x000D_ Dual display of set point and process value_x000D_ On demand autotuning of PID parameters_x000D_ Programmable thermocouple, PT100, mV, 0-10V or 0-20mA inputs_x000D_ 1 or 2 on/off or PID control outputs_x000D_ Sensor break detection & error compensation_x000D_ Sensor range: J -200 to 750ºC; K -200 to 1350ºC; T -200 to 400ºC; R 0 to 1750ºC; S 0 to 1750ºC; C 0 to 2300ºC; E -200 to 750ºC; B 149 to 1820ºC; N -200 to 1300ºC; L -200 to 900ºC; U -200 to 400ºC; W 0 to 2300ºC; Platinel II 0 to 1390ºC; PT100 -100 to 850ºC_x000D_ Ambient temperature range: 0 to 50°C, 85% RH non-condensing_x000D_ Resolution: 1//0.1ºC for thermocouples/RTDs; 1//0.1/0.01/0.001 for analogue I/P_x000D_ Dimensions: H96 x W96 x D84.5mm_x000D_ Weight: 270g
