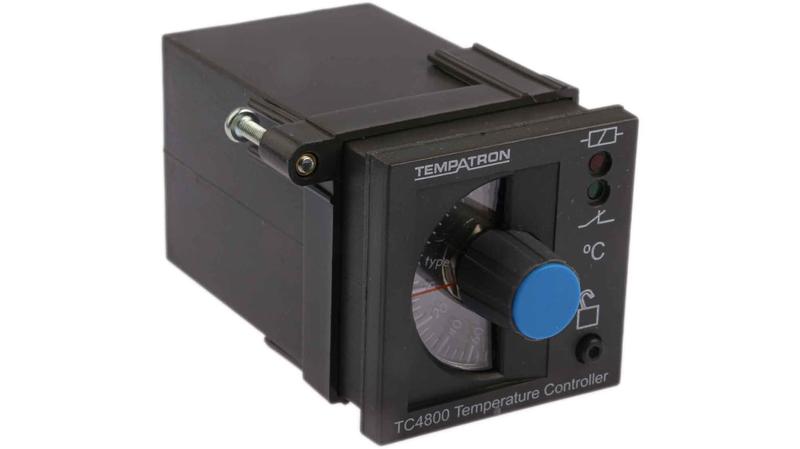

TC4810-01-110/240VAC Tempatron 1/16 DIN On/Off Temperature Controller, 48 x 48mm Relay, 110 → 240 V ac Supply Voltage

Tempatron Temperature Controller_x000D_ The Tempatron TC4800 series temperature controller has a supply voltage rating ranging from 110VAC to 240VAC. This controller has a length of 48mm and width of 48mm. It is available in ON/OFF, PD (proportional and derivative) and latching versions, designed for simple control of temperature. The controller operates on K type thermocouple input. The controller is housed in a compact DIN48 square enclosure that can be 1/16 DIN rail mount to a socket._x000D_ Analogue:_x000D_ This temperature controller has an operating voltage range of 110/240VAC, an ambient temperature range from -10°C to 50°C and LED status and supply indication. The panel cut out dimensions are 45mm x 45mm._x000D_ Features and Benefits_x000D_ Scale range is 0°C to 200°C (K type thermocouple)_x000D_ LED status and supply indication_x000D_ Use any suitable 50-0-50μA meter for deviation readings_x000D_ PD types have 'over temperature', 'in-band' and 'under temperature' LED's_x000D_ Supplied with hex key to lock temperature setting_x000D_ Reverse or direct action_x000D_ Relay output_x000D_ Matching timers and tachometer relays_x000D_ Certifications_x000D_ EN50081-1_x000D_ EN50082-1 for EMC_x000D_ EN61010-1_x000D_ IP40 rated
