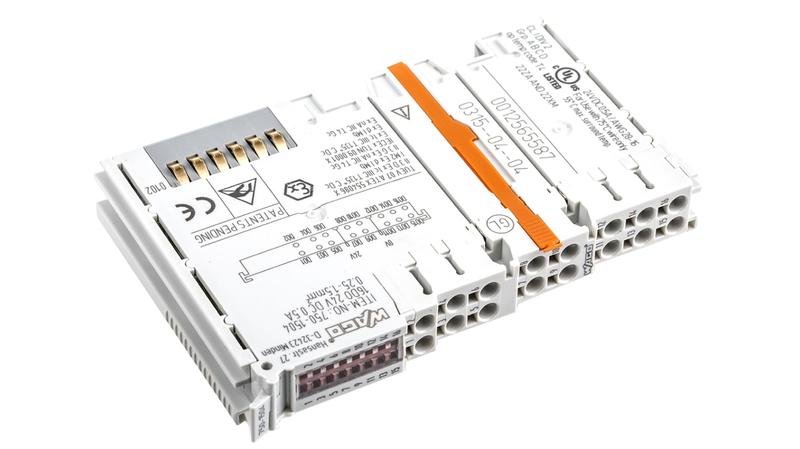

750-1504 Wago PLC I/O Module for use with 750 Series, 67 x 12 x 100 mm, Digital, 24 V dc

Wago PLC I/O Module_x000D_ The Wago I/O SYSTEM 750 series PLC I/O module has 16 digital output channels. It transmits binary control signals from the automation device to the connected actuators (magnetic valves, contactors, transmitters, relays or other electrical loads). It has cage clamps terminations, which provides the direct insertion of solid conductors. It is used with 750 series._x000D_ Features and Benefits_x000D_ Green LED indicates the switched status of each channel_x000D_ An optocoupler provides electrical isolation between the bus and the field side_x000D_ Remote I/O modular system for all functions_x000D_ Makes it easier to connect all I/Os_x000D_ Communication with PC and PLCs_x000D_ Colour codes according to type of signal_x000D_ DIN mounting_x000D_ Dimension are 67mm x 12mm x 100mm_x000D_ Operating temperature ranges between 0°C and 55°C_x000D_ Power supply voltage 24VDC_x000D_ Applications_x000D_ Industrial automation_x000D_ Robotics_x000D_ Automobile industry_x000D_ Certifications_x000D_ ANSI/ESD S20.20:2014_x000D_ BS EN 61340-5-1:2007_x000D_ CE certified
