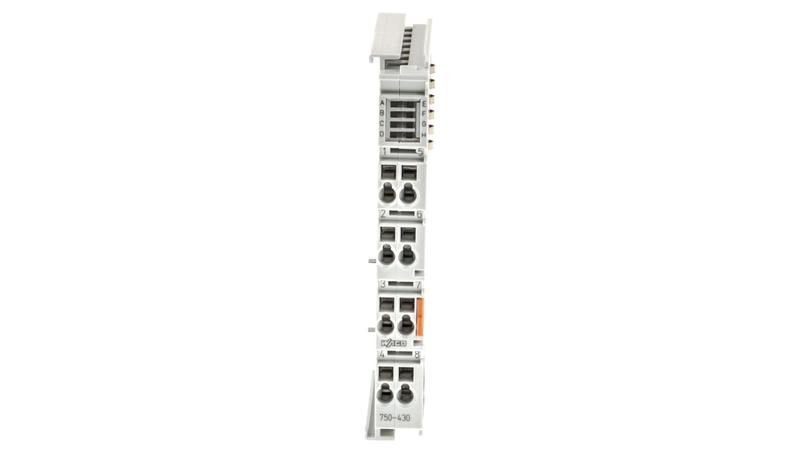

750-430 Wago PLC I/O Module for use with 750 Series, 100 x 12 x 64 mm, Digital, TM5, 24 V dc

Wago PLC I/O Module_x000D_ The Wago 750 I/O SYSTEM 750 series PLC I/O module has 8 digital channels. It receives control signals from digital field devices. Each of the input modules has a noise-rejection filter and this filter is available with different time constants. An optocoupler is used for electrical isolation between the bus and the field side._x000D_ Features and Benefits_x000D_ Easy to identify by yellow codes_x000D_ Spring terminal connection_x000D_ Remote I/O modular system for all the functions_x000D_ Makes it easier to connect all I/Os_x000D_ Communication with PC and PLCs_x000D_ Colour codes according to type of signal_x000D_ DIN mounting_x000D_ Power supply is 24VDC_x000D_ Operating temperature ranges between 0°C and 55°C_x000D_ Dimensions are100mm x 12mm x 64mm_x000D_ Applications_x000D_ Industrial automation_x000D_ Robotics_x000D_ Automobile industry_x000D_ Certifications_x000D_ EN 60079-0_x000D_ IEC 60079-0_x000D_ UL 121201 listed_x000D_ EN 60079-15_x000D_ ANSI/ISA 12.12.01_x000D_ UL 508 listed_x000D_ CE certified_x000D_ IP20 rated
