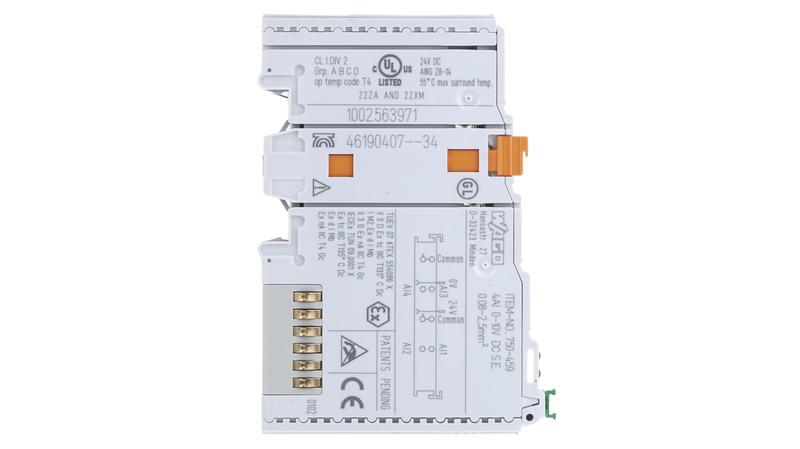

750-459 Wago PLC I/O Module for use with 750 Series, 100 x 12 x 64 mm, Analogue, TM5, 0 → 10 V

Wago PLC I/O Module_x000D_ The Wago I/O SYSTEM 750 series PLC I/O module has 4 analogue channels. The analogue input module receives signals with standardised values ranging between 0mA and 20mA, 4mA and 20mA. The input signal is electrically isolated and will be transmitted with a resolution of 12bits._x000D_ Features and Benefits_x000D_ Remote I/O modular systems for all the functions_x000D_ Makes it easy to connect all the I/Os_x000D_ Communication with PC and PLCs_x000D_ Colour codes according to the type of signal_x000D_ DIN mounting_x000D_ Power supply is 32V_x000D_ Operating temperature ranges between 0°C and 55°C_x000D_ Dimensions are 100mm x 12mm x 65mm_x000D_ Input channels of the module have one common ground potential_x000D_ Internal system supply is used for the power supply of the module_x000D_ Easy identification by green colour coding_x000D_ Applications_x000D_ Industrial automation_x000D_ Robotics_x000D_ Automobile industry_x000D_ Certifications_x000D_ IP20 rated_x000D_ EN 60079-0_x000D_ IEC 60079-0_x000D_ UL 121201 listed
