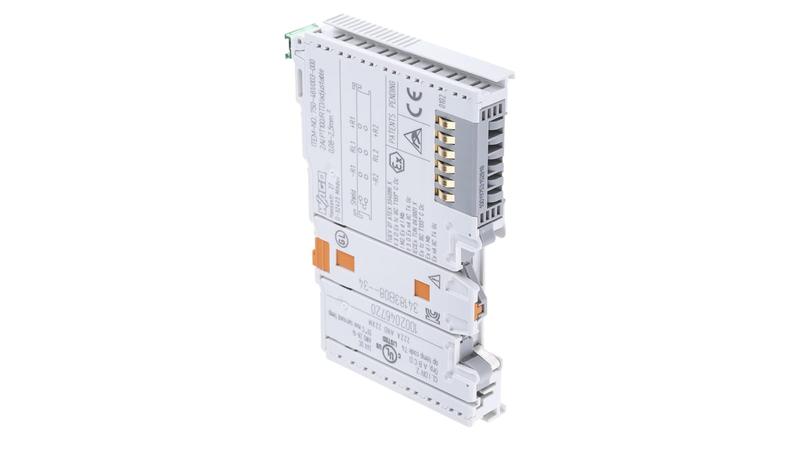

750-461/003-000 Wago PLC I/O Module, 64 x 12 x 100 mm, Analogue, Voltage, G4

Wago PLC I/O Module_x000D_ The Wago 2-channel analogue input PLC I/O module is used for Pt100/RTD resistance sensors. This analogue input module directly connects to Pt and Ni resistance sensors. The connection of 2 or 3 conductor sensors is possible. This module automatically linearizes the entire temperature range. It has a green LED, which indicates readiness for operation and error-free communication with the bus coupler. The screen is directly connected to the DIN rail._x000D_ Features and Benefits_x000D_ A sensor error is indicated by a red LED_x000D_ Measuring error ranges between 0.5K and 3.0K_x000D_ Easy to identify by colour coding depending on signal type_x000D_ Fast cage clamp connection system_x000D_ Electrical supply through the coupler_x000D_ Operating temperature ranges between -200°C and 850°C_x000D_ Applications_x000D_ Marine industry_x000D_ Certifications_x000D_ CE certified_x000D_ EN 61000-6-2_x000D_ EN 61000-6-4_x000D_ UL 508_x000D_ IP20 rated
