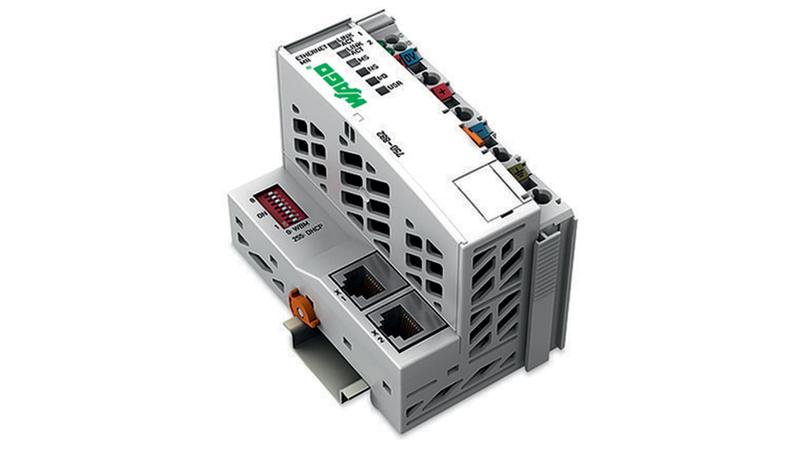

750-882 Wago PLC CPU, For Use With 750 Series

ETHERNET Media Redundancy Programmable Fieldbus Controller_x000D_ PLC - ETHERNET Media Redundancy Programmable Fieldbus Controller connects ETHERNET to the modular WAGO-I/O-System, and is used in ETHERNET networks requiring fast and safe media redundancy._x000D_ Media redundancy is achieved by operating the controller in two separate networks, in which it is accessible via two different IP addresses (including two MAC IDs). Cross communication between separate channels is not possible. The two separate ETHERNET interfaces allow redundant connection of two transmission paths (no hub or switch required)._x000D_ Two Ethernet interfaces (RJ45)_x000D_ Baud rate 10/100 Mbit/s_x000D_ DIP switch for configuration_x000D_ 512 kB data memory available_x000D_ Wire connection via Cage Clamp connectors_x000D_ Power supply 24 Vdc_x000D_ IP20 protection_x000D_ Wago I/O system range_x000D_ Remote I/O modular system for all functions._x000D_ Makes it easier to connect all I/Os thanks to its Cage clamp system®_x000D_ Communication with PC, PLCs thanks to the various communication protocols._x000D_ Colour codes according to type of signal._x000D_ Do not forget to order the end module (508-3959)
