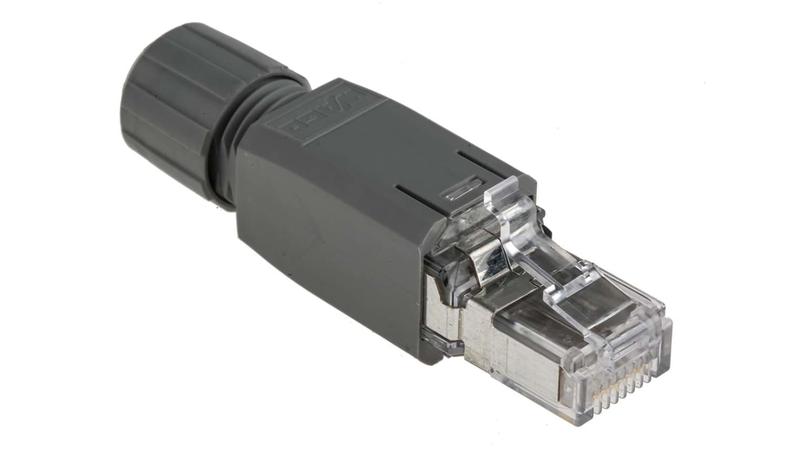

750-975 Wago Connector for use with Field Assembly

Wago Ethernet RJ-45 Connector_x000D_ The Wago Ethernet RJ-45 connector is a high tech device with 10Mbits/second to 100Mbits/second data transmission speed. It has 8 poles with a bronze contact material. It uses the IDC technology for easy field assembly connection made without tools. Large conductor cross-sections can also be connected._x000D_ Wago I/O system range_x000D_ Remote I/O modular system for all functions_x000D_ Makes it easier to connect all I/Os thanks to its Cage clamp system_x000D_ Communication with PC, PLCs thanks to the various communication protocols_x000D_ Colour codes according to the type of signal_x000D_ Features and Benefits_x000D_ Housing material is plastic, grey_x000D_ Insulation material is polycarbonate_x000D_ Cable strain relief: >50N_x000D_ Large conductor cross-sections can also be connected_x000D_ The connector satisfies Category 5e_x000D_ Operating temperature ranges between -20°C and 70°C_x000D_ Applications_x000D_ Industrial_x000D_ Office and building wiring_x000D_ Certifications_x000D_ IP20 rated_x000D_ IEC 60603-7 RJ-45 category 5_x000D_ ISO/IEC 11801: 2002 certified_x000D_ EN 50173: 2002_x000D_ EIA/TIA 568A: 2002_x000D_ IEC 60068-2-6
