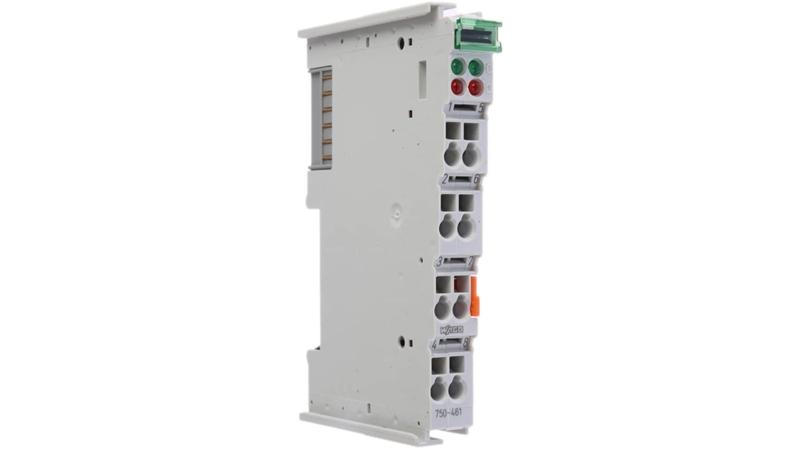

750461 Wago PLC I/O Module for use with 750 Series, 100 x 12 x 64 mm, Analogue, CJ2

Wago PLC I/O Module_x000D_ The Wago PLC I/O is a 4-channel analogue inputs module. It has analogue input terminals for connecting temperature sensors with inputs ranging between 4mA and 20mA. This module automatically linearizes the entire temperature range. It also indicates a sensor error by a red LED. A green LED indicates readiness for operation and error-free communication with the bus coupler. The screen is directly connected to the DIN rail. The module is compatible with 750 series PLCs._x000D_ Features and Benefits_x000D_ Error indication by LED_x000D_ Input module directly connects to Pt resistance sensors_x000D_ Measuring error ranges between0.5K and 3.0K_x000D_ Operating temperature ranges between 0°C and 55°C_x000D_ Certifications_x000D_ CE_x000D_ IP20 rated_x000D_ IEC 61131-2_x000D_ UL 121201_x000D_ IEC 60079-0_x000D_ EN 60079-0
