759-302/000-923 Wago PLC Programming Software for use with 759 Series

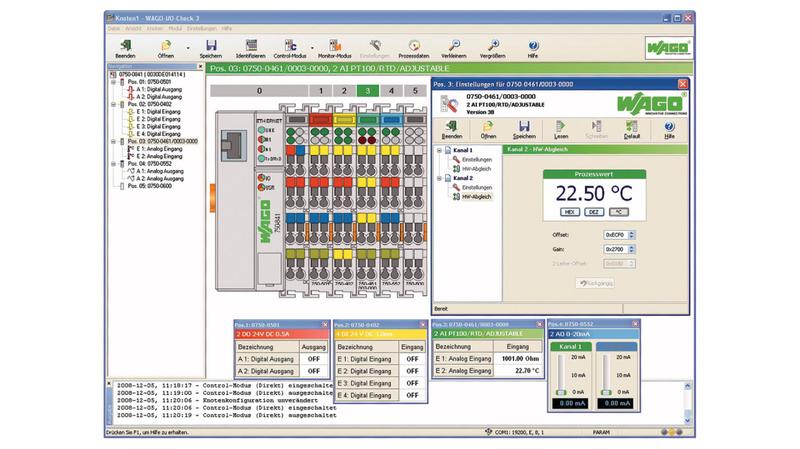

WAGO-I/O-CHECK - Commissioning Tool For WAGO-I/O-SYSTEM 750_x000D_ WAGO-I/O-CHECK is an easy-to-use Windows application for operating and displaying a WAGO-I/O-SYSTEM 750 node without connecting the node to a fieldbus system._x000D_ The software reads the configuration from the node and displays it as an on-screen graphic. The graphic can be printed together with a configuration list as documentation._x000D_ With WAGO-I/O-CHECK, it is possible to display and determine the process data of the bus modules. The field wiring, including all sensors and actuators, can thus be checked before startup._x000D_ Application-specific settings, such as the baud rate or sensor types, can be made with select interface, Pt100 and thermocouple modules. For communicating between WAGO-I/O-CHECK and the node, the coupler must be connected at a PC’s vacant serial or USB port using the communication cable supplied in the kit with the system._x000D_ The kit contain the software and a cable_x000D_ Software is on a CD-ROM_x000D_ Running with Windows XP and Windows 7_x000D_ The tool is available as_x000D_ - RS-232 Kit, stock no. 667-9255_x000D_ - USB Kit, stock no. 882-0338_x000D_ Wago I/O system range_x000D_ Remote I/O modular system for all functions._x000D_ Makes it easier to connect all I/Os thanks to its Cage clamp system®_x000D_ Communication with PC, PLCs thanks to the various communication protocols._x000D_ Colour codes according to type of signal._x000D_ Do not forget to order the end module (508-3959)
