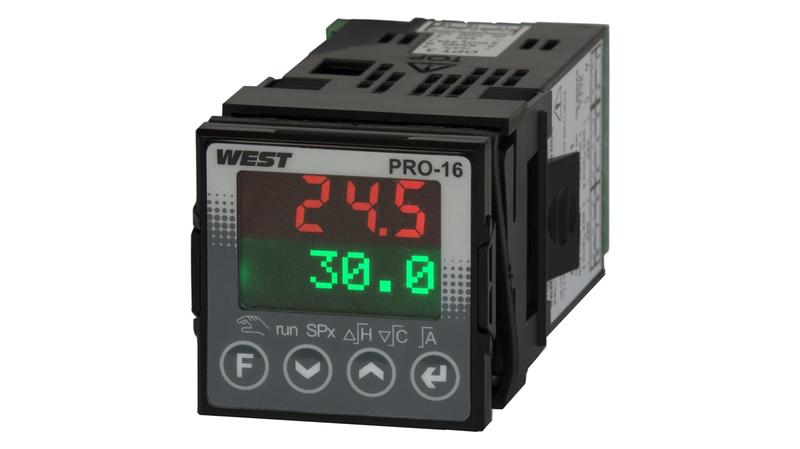

KS20-10TRR0020-01 West Instruments KS20 PID Temperature Controller, 48 x 48mm, 6 Output Relay, 100 → 240 V ac Supply Voltage

West Pro-16 Temperature Controller_x000D_ A compact, fully featured controller for demanding applications._x000D_ Pro-16 is the only controller of its size, flexible with up to 6 outputs, 2 digital inputs, a remote setpoint input, RS485 communications* and linked to best in class Blue Control software._x000D_ The Pro-16 offers many integrated features for unrivalled performance such as two PID sets to ensure reliable control over a wide setpoint range and separate PID for heat and cool strategies for optimized control and stability. Extensive flexibility is offered with 1 universal inputs and 1 optional, up to 4 digital inputs, 6 outputs and an inbuilt profiler with 16 profiles x 16 segments._x000D_ A highly visible display is offered with 1 line of 7 segment LED display and 1 line of text display._x000D_ • Up to 16 profiles with x 16 segments with 4 event tracks_x000D_ • BluePort® Front interface and BlueControl software_x000D_ • Maintenance manager and error list_x000D_ • One universal input and one optional input_x000D_ • Up to 4 digital inputs_x000D_ • 2 PID set manually selectable_x000D_ • Self-Tuning at start-up and setpoint_x000D_ West Instruments Pro Series Temperature Controllers
