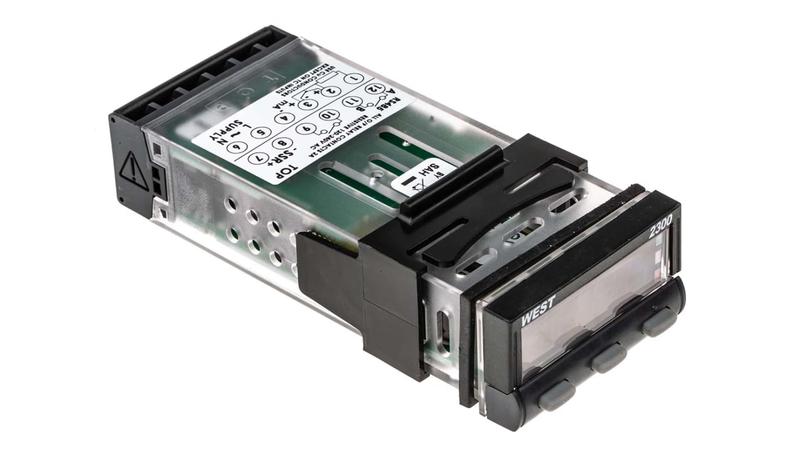

N2300Y1211 West Instruments N2300 PID Temperature Controller, 49 x 25mm, 2 Output Relay, 100 V ac, 240 V ac Supply Voltage ON/OFF

West Instruments Temperature Controller_x000D_ The West Instruments N2300 series temperature controller has a supply voltage rating ranging from 100VAC to 240VAC. This controller has a width of 25mm and a length of 49mm. The device has up to 2 outputs (relay or solid-state driver) for alarm. It has full 3-wire PT100 inputs. The controller has the largest red digital display and 3 additional multi-colour LEDs to indicate process, alarm and configuration statuses. The large and tactile rubberized keys provide a more practical human interface that is complemented with a specially developed hands-free PID tuning algorithm. It has an easy-tune algorithm that continuously monitors and improves control. Alternatively, the instrument can be manually fine-tuned for a specific application._x000D_ Features and Benefits_x000D_ Accuracy is 0.1%_x000D_ Hands-free easy tune PID algorithm_x000D_ Optional second alarm relay (option) or RS-485 communication_x000D_ PID control for (auto-tuning) hands-free operation with manual override tune capability for specialized applications_x000D_ Simple straight forward operation for easy setup_x000D_ solid-state relay SSR for primary control and alarming_x000D_ Applications_x000D_ Baking_x000D_ Curing rubber_x000D_ Drying/evaporating solvents from painted surfaces_x000D_ Heat treatment of metals_x000D_ Certifications_x000D_ CE certified_x000D_ E160863_x000D_ IP20 rated_x000D_ IP65 rated_x000D_ IP66 rated_x000D_ UL approved
