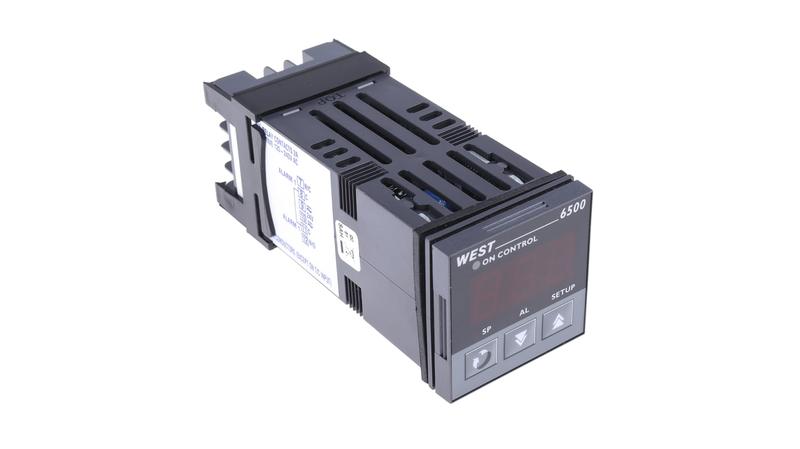

N6500Z211002 West Instruments N6500 PID Temperature Controller, 48 x 48 (1/16 DIN)mm, 2 Output Relay, 24 → 48 V ac/dc Supply

West N6500 Temperature Controller_x000D_ The West N6500 series temperature controllers are a Thermocouple based range of units offered in a standard 1/16DIN construction suitable for implementation into most systems. The controllers easy tune (PID) functionality means for simplified set up and commissioning as well as having a clear and concise 3 digit display with easy to use 3 button operation. Featuring control indicators for on-control, set-up, set point and process alarms, the N6500 series is both reliable and easy to use._x000D_ Featuring both PID and on/off control functions, the N6500 range of controllers are capable of managing a wide range of processes that need continuous monitoring. The PID function within the controller offers a continuous control feedback loop to calculate error values between the users’ desired set point and the processes measured variable value. This calculation drives proportional change within the system to make corrections back to the desired set point. PID functionality uses an easy tune feature within the device to automatically calibrate ready for quick and easy implementation. Second to the controllers PID function, a more basic on/off control is available for a simpler implementation of temperature control._x000D_ • Clear and easy to use 3 button operator interface_x000D_ • Bold 13mm high 3 digit red LED display_x000D_ • Easy to install into any 1/16DIN unit_x000D_ • Fast set up and commission_x000D_ • Easy tune (PID) or On/Off_x000D_ • Control Relay or SSR plus Optional Alarm Relay_x000D_ • On-control, set-up, alarm and set point indicators_x000D_ • Alarms for process high and low as well as deviation or band_x000D_ • Adjustable PV offset_x000D_ • Process alarms_x000D_ The N6500Z211002 model controller from West Instruments is a two output unit that requires a 24-48 V ac/dv power supply. Output 1 of this controller unit is a single relay control output similar to the standard single output N6500Z210002 unit. Unlike the N6500Z210002 unit, this N6500Z211002 model features a secondary output functioning as a relay alarm. This additional output allows more flexibility and reliability during process monitoring. The clear and fixed use of each output allows for simple and easy installation with West Instruments entry level controller._x000D_ West Instruments N Series Temperature Controllers
