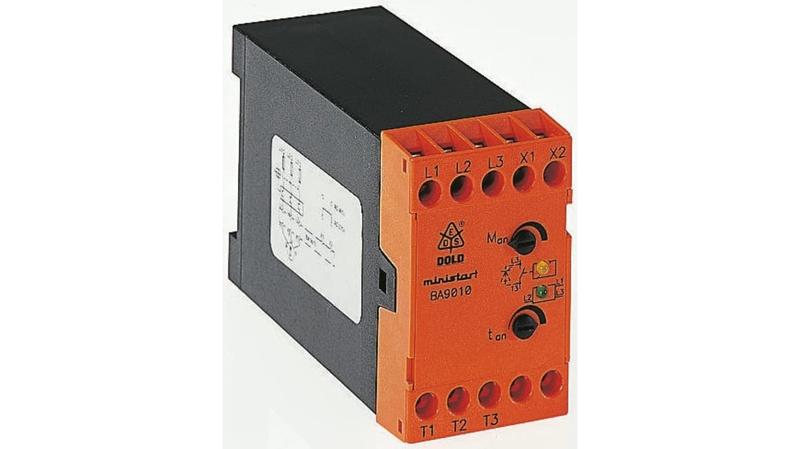

BA9010 3AC230/400V 1.5/3kW Dold 1.5 kW, 3 kW Soft Starter, 230 V ac, 400 V ac, 1 Phase, IP30

Soft starter, BA9010_x000D_ One of the three motor phases is influenced in the BA9010 by phase control in such a way that the current in this phase rises steadily. The motor torque behaves in exactly the same way during start-up. This guarantees that the drive can start up without jerking. It is thus impossible for drive elements to be damaged, because the abrupt starting torque caused by direct starting is not generated. This property enables a cost-efficient design for the drive elements._x000D_ A marked reduction of starting noise is also perceived. Slippage or tipping over of items being conveyed on belts is avoided._x000D_ After starting, the power electronics are bridged via an internal relay contact to minimise losses in the device._x000D_ Applications_x000D_ Machines with gear, belt and chain drives_x000D_ Conveyor belts, fans, pumps, compressors_x000D_ Packaging machines, door operating mechanisms_x000D_ Inrush current limitation for single-phase transformers_x000D_ Features_x000D_ Increases the service life of asynchronous motors and mechanical drive components_x000D_ For motor ratings up to 3 kW_x000D_ Single-phase motor control_x000D_ Easy installation even in existing systems_x000D_ No need for a neutral conductor_x000D_ Starting time and starting torque can be adjusted separately._x000D_ Can be combined with motor brake units._x000D_ Suitable for snapping onto a 35 mm standard top-hat rail_x000D_ An f/V converter is frequently not needed for simple applications_x000D_ Power semiconductor bridged after successful start-up_x000D_ LED displays_x000D_ Overall width 45 mm_x000D_ Warning_x000D_ If devices are used in 230 V three-phase networks, the next higher power stage must be used for a given motor power, because the motor current determines the overall size of the device._x000D_ The starting current in the network cannot be lowered with these devices. In order to achieve this simultaneously with torque reduction, the BA9026 must be used, for example._x000D_ The BA9010 must not be operated with a capacitive load (e.g. reactive power compensation) at the output._x000D_ In the decoupled state (without load), the starting behaviour is not particularly smooth._x000D_
