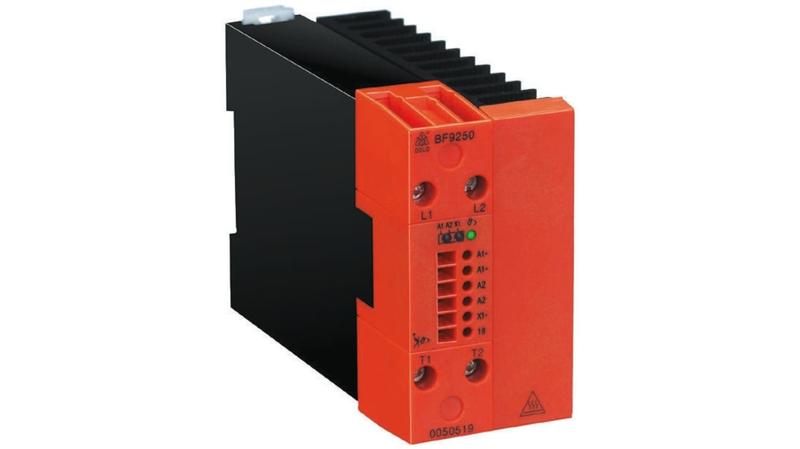

BF9250.03/001 UH=DC24V 3xAC10A AC24-480V Dold Solid State Contactor, 3 Pole, 24 V dc Control, 10A Load, 24 → 480V ac Load, 3NO

Semiconductor contactor_x000D_ Semiconductor contactors for wear-free, silent switching of AC loads such as heating, motors, valves and lighting_x000D_ The cost of investing in this new technology is quickly recovered where high switching rates are used_x000D_ Zero-voltage switching to prevent feedback to the main power grid_x000D_ Integrated temperature monitoring ensures the device is protected from damage caused by excess current_x000D_ In accordance with EN 60 947-4-2, IEC 60 158-2, VDE 0660 part 109_x000D_ Single-phase or 3-phase design_x000D_ Control input X1 with low power consumption, e.g. for PLC control_x000D_ High switching frequency coupled with long service life_x000D_ Compact construction with integrated heat sink_x000D_ For switching AC loads up to 480 V_x000D_ Protection circuit with varistors_x000D_ Temperature monitoring via LED display and semiconductor output (memory preservation)_x000D_ 3 LED displays_x000D_ Top-hat rail mounting_x000D_ Semiconductor Contactors_x000D_ A range of complete ’ready to use’ devices that comprise relay and heat sink in one compact DIN rail mountable unit. Typical applications include control of non motor loads where high operating frequencies are encountered.
