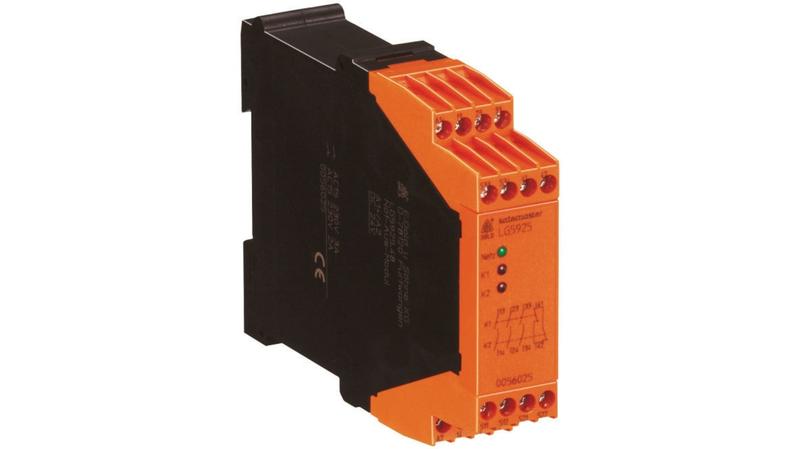

LG5929.60/61 AC/DC24V Dold LG 5929 Series Output Module, 2 Inputs, 24 V ac/dc, 5NO/NC

LG 5925 - Emergency stop module, LG 5929 - Expansion module_x000D_ Applications_x000D_ Emergency stop and expansion modules for_x000D_ - Machine emergency stop switching_x000D_ - Monitoring sliding grill guards_x000D_ General data_x000D_ Safety category 4 in accordance with EN954-1_x000D_ Operating status indicator_x000D_ 22.5 mm overall width_x000D_ Emergency stop module LG 5925.48_x000D_ 1 or 2-channel configuration_x000D_ Line termination recognition on the ON button_x000D_ with or without crossover recognition_x000D_ Expansion module LG 5929.60_x000D_ Use only with a higher-level emergency stop module_x000D_ Redundant and force guided contacts_x000D_ 1-channel configuration_x000D_ Standards_x000D_ EN 60204-1 (stop functions), EN 418, prEN574, prEN 954-1, IEC / EN 60204-01,_x000D_ EN 954-1_x000D_ Approvals_x000D_ CE_x000D_ Dold Emergency Stop Module_x000D_ The Dold LG5929 series emergency stop module has a single-channel 5NO/1NC normal state configuration. This extension unit has a supply voltage of 24VDC/AC._x000D_ Features and Benefits_x000D_ 1 semiconductor output_x000D_ Line fault detection on on-button_x000D_ Manual restart or automatic restart, switch S2_x000D_ With or without cross fault monitoring in the E-stop loop, switch S1_x000D_ Cross fault monitoring in the E-stop loop_x000D_ LED indicator for state of operation_x000D_ LED indicator for channel 1 and 2_x000D_ Removable terminal strips_x000D_ Wire connection also 2mm x 1.5mm2 stranded ferruled, or 2mm x 2.5mm2_x000D_ Fixed screw terminals connection_x000D_ Applications_x000D_ Emergency stop circuits on machines_x000D_ Monitoring of safety gates_x000D_ Certifications_x000D_ CE certified_x000D_ TUV certified_x000D_ cULus listed_x000D_ CCC certified_x000D_ IEC/EN 62061_x000D_ IEC/EN 61508 category 4_x000D_ EN 954-1
