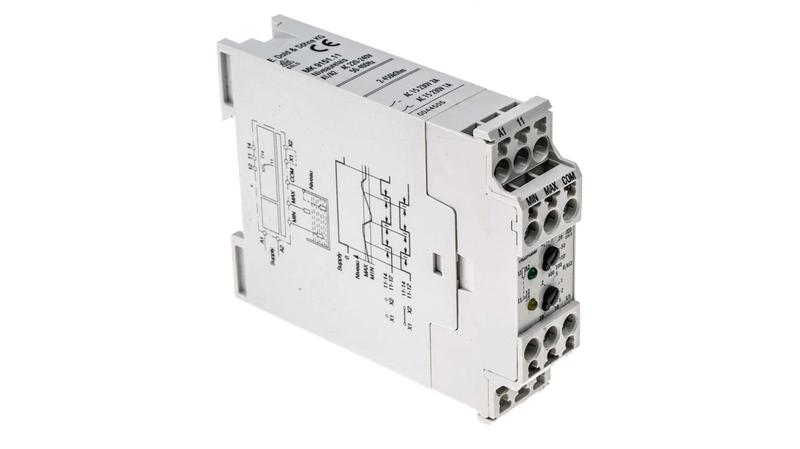

MK9151.11 2-450kOhm AC220-240V Dold Liquid Level Relay - DIN Rail, 220 → 240 V ac 1

Dold Level Relay_x000D_ The Dold MK9151 series liquid level relay is a single input and DIN rail mount device. It monitors and controls conductive liquids and powders, example maximum and minimum fill level, protection against overfilling and dry running. The 3-probe connections for 2-point and 1-point level control. It has 220VAC to 240VAC supply voltage. General resistance monitoring, example recording temperature limits with PTC (device to IEG 255, VDE 0435 section 303). This device is straightforward to install and safe to use._x000D_ Features and Benefits_x000D_ High interference resistance of the measuring circuit, which is isolated from the mains_x000D_ Maximum wire length to the probes is 1500m_x000D_ Large setting range between 2kohm and 450kohm which permits differentiation between fluid and foam_x000D_ Adjustable response and release time delay: 0.2seconds to 20seconds_x000D_ Programmable for open circuit operation (without bridge) or closed circuit operation(bridge X1-X2 or X1-COM)_x000D_ Green LED for operation_x000D_ Yellow LED for contact position_x000D_ 1 or 2 changeover contacts_x000D_ Also available with a sealable transparent cover_x000D_ Applications_x000D_ Liquid Level Relays (Conductive Level Sensors) are used in a wide variety of applications including waste water management and the monitoring and management of corrosive liquid media and designed specifically to provide for the: Monitoring and control of liquid levels_x000D_ Protection of pumps against dry running_x000D_ Ability to detect liquid leaks in a system_x000D_ Control of media mixing ratios_x000D_ Control of liquid levels_x000D_ General resistance monitoring tasks, e. G. limit temperature detection with PTC_x000D_ Certifications_x000D_ IEC/EN 60 255_x000D_ DIN VDE 0435-303_x000D_ IEC/EN 61 140_x000D_ IEC/EN 60 947-1_x000D_ CSA approval_x000D_ IP40 rated
