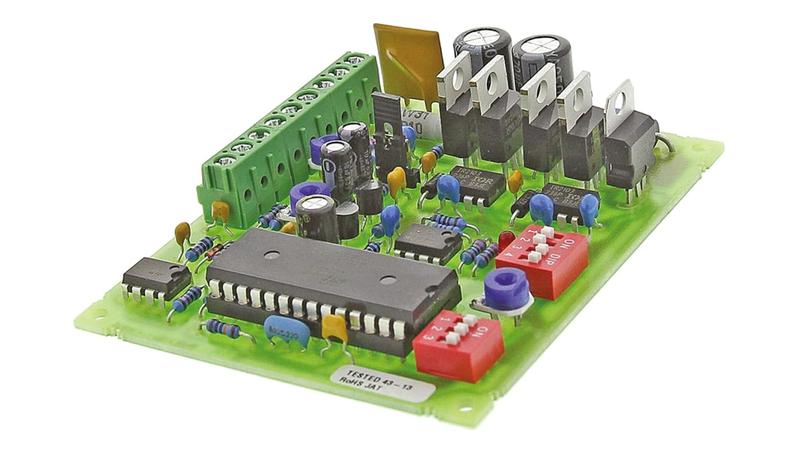

EM-101/BI Electromen OY DC Motor Controller, 20 → 34 V dc, 4.2 A, 36 V

4 Quadrant 24V_x000D_ The drive is designed for modern automation systems. Control can be performed easily with relay or open collector outputs. Analogue controls work with ±10V voltage. Usable motor can be permanent magnet motor with brushes,in power range of 5 to 80 W. Due to the advanced pulse control (PWM) the unit operates with high efficiency, low temperature losses and provides a high starting torque. Loading of the motor can be compensated with in-built RI-adjustment. The current, or in other words, the torque of the motor can be controlled with DIP-switch. The operation of the current limit is indicated with a red led. There are a variety of braking options available in this device. For most effective braking "reverse braking" -mode can be used. In this mode reversed driving is used for braking, which effects extremely fast function. Additionally the card utilises short circuit braking which short circuits the motor circuit during the braking. The drive also has in-built and selectable timing for the acceleration and deceleration ramps._x000D_ 4 Quadrants_x000D_ Self recovery fuse (4A)_x000D_ Adjustable current limit_x000D_ Adjustable acceleration / deceleration ramps_x000D_ Load compensation (IR comp)_x000D_ Special braking options_x000D_ Supply voltage compensation_x000D_ Positive logic control_x000D_ Electromen - EM-101 DC MOTOR CONTROLLER 20-34 V DC, 4.2A_x000D_ The EM-101 is developed for driving control and direction change in brushed DC motor applications up to 70W.Control can be performed with relay, open collector outputs or set with analogue voltage,due to the advanced pulse control (PWM) the unit operates with high efficiency, low temperature losses and provides a high starting torque._x000D_ EM-101 has adjustable acceleration and braking ramps and adjustable current limit (when reached this is indicated by onboard LED)_x000D_ Loading of the motor can be compensated with inbuilt in resistor adjustment and is adjusted with DIP switches_x000D_ Two braking options are available, for most effective braking 'reverse braking' mode can be used, this reverses driving and provides an extremely fast function_x000D_ The drive also offers dynamic braking which shorts the motor terminals during the braking_x000D_ Features and Benefits_x000D_ High efficiency drive with low RF emissions_x000D_ 4-quadrant control_x000D_ Continuous and 2-step speed controlling_x000D_ Settable current limit_x000D_ Settable acceleration/brake ramp_x000D_ Braking options_x000D_ Load compensation_x000D_ Compact and DIN rail mountable
