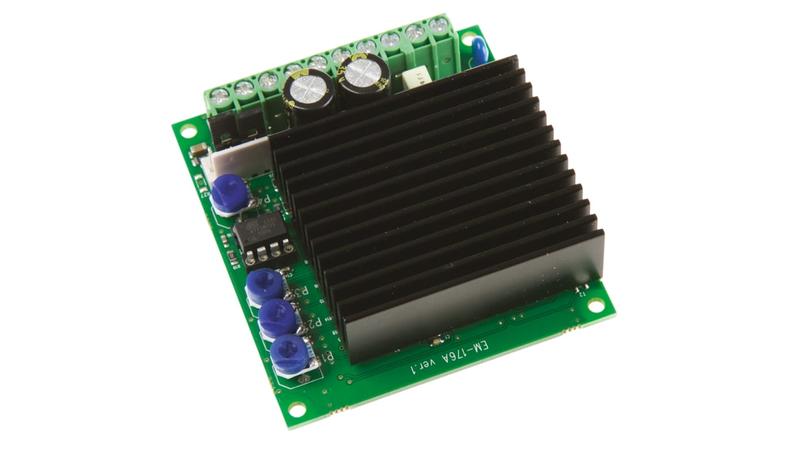

EM-176 Electromen OY DC Motor Controller, 12 → 35 V dc, 10 A, 12 V dc, 24 V dc

EM-176 DC-Motor Controller_x000D_ EM-176 is designed for DC-motor speed control. The unit can be used with unregulated DC supply. Motor loading can be compensated with inbuilt RxI-type adjustment._x000D_ Speed control value can be set with voltage signal or with potentiometer, there is an auxiliary voltage signal output for potentiometer use._x000D_ 4 Quadrants_x000D_ Braking_x000D_ Freewheeling_x000D_ Reversal_x000D_ 0 to 10V control_x000D_ Optional ±10V control_x000D_ Soft start ramp_x000D_ Adjustable current limit_x000D_ Load compensation (RxI)_x000D_ High efficiency_x000D_ High peak loading capacity_x000D_ Rail mountable_x000D_ Electromen - EM-176 DC MOTOR CONTROLLER 12/24VDC, 10A_x000D_ The EM-176 motor driver is a 4-quadrant DC-motor speed controller and is suitable for 12 or 24V supply. The unit utilizes a PWM driven H-bridge and achieves high efficiency and extensive controlling options.Control can be provide by a potentiometer or direct voltage signal and the drive offers adjustable load compensation, if required.An auxiliary card can be fitted to EM-176 to provide a means to apply a symmetrical (+/-) control input with either a voltage signal or potentiometer. The ramp feature is used to control the motor start up and braking rates, this is set with an on-board trim pot_x000D_ The scale trimmer can be used to scale set value to correspond better the motor rpm._x000D_ The current limit can be set with either the trim pot or with a direct voltage signal, this can be adjusted to protect the motor and transmission in a jam situations_x000D_ The unit has separate inputs for brake, freewheel and reverse._x000D_ The brake function shorts the motor poles to provide dynamic braking, the reverse command changes motor direction with ramp times to allow for smooth direct change_x000D_ The freewheel command sets the motor free from all control, the freewheel command overrides all other commands_x000D_ Features and Benefits_x000D_ High efficiency drive with low RF emissions_x000D_ 4-quadrant control_x000D_ Brake, freewheel and reverse commands_x000D_ Option for symmetrical control input ±10V_x000D_ Settable current limit_x000D_ Settable acceleration/brake ramp_x000D_ Braking options_x000D_ Load compensation_x000D_ Compact and DIN rail mountable_x000D_ 12-24Vdc, 10A continuous, 15A peak_x000D_ Speed, direction and braking control_x000D_ Adjustable start ramp and current limit_x000D_ Compact and DIN rail mountable_x000D_ EM-A1 card slot option for symmetrical control ±5V or ±10V (rev-stop-fwd)
