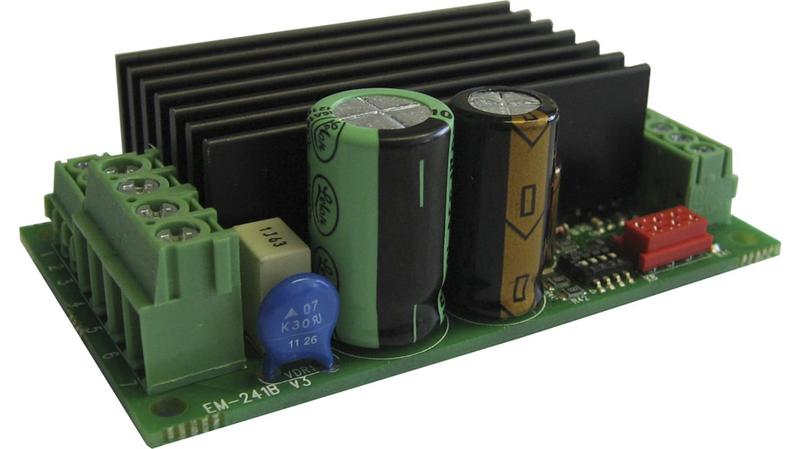

EM-241-SPF Electromen OY DC Motor Controller, 10 → 35 V, 15 A, 35 V

Electromen - EM-241SPF DC MOTOR POSITIONING CONTROLLER, 12-24 V, 15A_x000D_ EM-241-SPF is a positioning driver to be used with DC-motors, the solid state power stage operates with high efficiency using FET-transistors.Feedback can be achieved with a one or two line pulse signal, although it is preferable and more accurate to do so with two 0°/90° pulse lines._x000D_ The driver includes an analogue control with 3 signal ranges, 0-5V, 0-11V or 4-20mA, the input is freely scalable within this range._x000D_ The maximum accuracy available for positioning is 0.2%, exceeding what is generally required for most actuator positioning applications._x000D_ The learn routine feature helps determine the full movement range quickly and easily and the range of be modified from both ends with limit switch parameters._x000D_ Current limits and driving speeds can be set individually for both directions._x000D_ Driver includes also many other dynamic adjustment options including: load compensation, dead-zone setting (positioning window), start and stop ramps for a smooth direction change and an adjustable braking zone._x000D_ The on-board LED-light indicates the possible fault situations, the fault signal can be forwarded through the combiport for external use_x000D_ Combiport can also be set to give 'position OK' output or re-transmit current position via analogue voltage output_x000D_ The drive has very low RF emissions and is suitable for use in in critical electromagnetic environments including medical_x000D_ For parameters setting there is 3 options: EM-236 interface unit, EM-268 with Menthol-Lite PC-program and EM-326 with Menthol-App application for smartphone_x000D_ Features and Benefits_x000D_ 12-24V dc, 15A continuous, 30A peak_x000D_ Set value 0-5V, 0-11V, 0-20mA & feedback input from encoder/hall sensor_x000D_ Positioning accuracy max. 0.2%_x000D_ Speed, direction, current limiting, soft start/stop and range adjustment control_x000D_ Compact and DIN rail mountable_x000D_ Quadrature pulse counting_x000D_ Multiple dynamic settings_x000D_ Solid state power stage_x000D_ One or two pulse feedback_x000D_ Voltage or current control (4-20mA) control_x000D_ Position accuracy max. 0.2%_x000D_ Flexible set up options_x000D_ * 15A continuous @ 2kHz PWM, 30A momentary (Ta<50°C)
