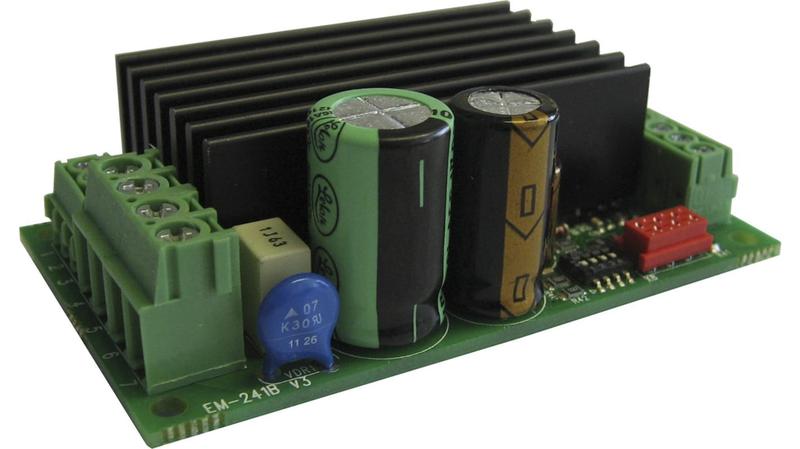

EM-241C Electromen OY DC Motor Controller, 10 → 35 V dc, 15 A, 12 → 24 V dc

Electromen - EM-241C DC MOTOR CONTROLLER, 12-24 V DC, 15 A_x000D_ The EM-241C is a full bridge brushed DC-motor starter.It is designed to work in a wide range of applications and offers a host of adjustments to optimise control for each application.The drive has adjustable acceleration and deceleration ramps to produce smooth starts and stops.Adjustable current limit protects motor against overcurrent and can also be used to provide an end-stop on current trip._x000D_ This device has also two settable speeds, a useful feature for positioning applications, control inputs are present for basic forward, backward and stop commands, as well as limit switch inputs to define end stops_x000D_ This device has also two settable speeds, this can be activated by dedicated input. The same input can be used for analogue speed control signal 0-5V_x000D_ Fault output can indicate current trip, over-current or zero-current conditions. It can also be pulled down to ground to disable the drive, if required_x000D_ C-version includes wo new parameter: freewheel options for release the rotor of motor, selectable pwm frequency (16kHz pwm being inaudible though current handling capacity is reduced)_x000D_ There are two selectable control modes, in continuous mode the motor runs as long as the control is active, in impulse mode it will operate from a momentary command_x000D_ Special settings are also available for start-up kick and auto reverse_x000D_ For parameters setting there are 3 options: EM-236 interface unit, EM-268 with EmenTool-Lite PC-program and EM-326 with EmenTool-App application for smartphone_x000D_ Features and Benefits_x000D_ 12-24Vdc, 10-15A continuous, 25-30A peak_x000D_ Speed, direction, current limiting, soft start/stop and auto-reverse control_x000D_ Limit switch inputs for end of travel_x000D_ Compact and DIN rail mountable_x000D_ Compact with high current output_x000D_ Current limit_x000D_ Zero current limit_x000D_ Overvoltage brake_x000D_ Speed setting_x000D_ Flexible control inputs_x000D_ Impulse / continuous mode_x000D_ DIN rail mountable_x000D_ Digital parameter - C-version replaces A and B versions_x000D_ C-firmware can be loaded B ver. card_x000D_ C.version available with Molex connector_x000D_ Current limit setting input (new)_x000D_ Freewheel options (new)_x000D_ 2kHz / 16kHz PWM frequency (new)_x000D_ * Continuous current output when ambient temp is <50°C_x000D_ 12-24Vdc version drive =_x000D_ 15A at 100% speed / 10A at 5-99% speed PWM=2kHz_x000D_ 10A at 100% speed / 5A at 5-99% speed PWM=16kHz_x000D_ Peak ( 5s.) 30A at 2kHz PWM and 25A at 16kHz PWM
