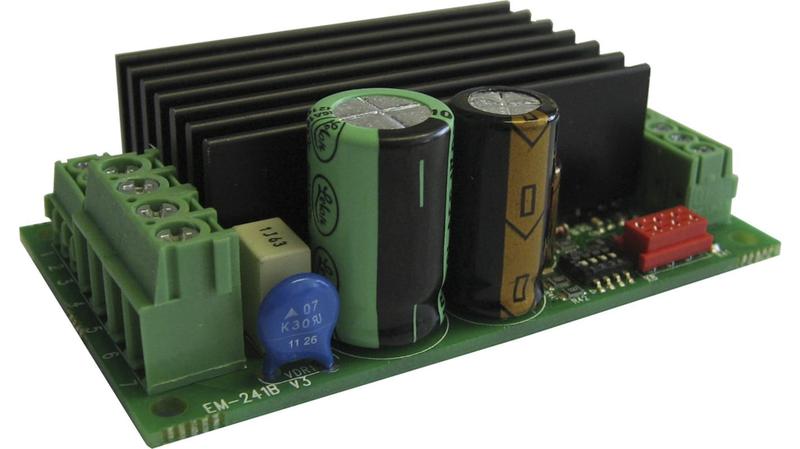

EM-241C 48V Electromen OY DC Motor Controller, 20 → 60 V dc, 10 A, 24 → 48 V dc

Electromen - EM-241C DC MOTOR CONTROLLER, 24-48 V DC, 10 A_x000D_ The EM-241C-48V is a full bridge brushed DC-motor starter._x000D_ It is designed to work in a wide range of applications and offers a host of adjustments to optimise control for each application._x000D_ The drive has adjustable acceleration and deceleration ramps to produce smooth starts and stops,adjustable current limit protects motor against overcurrent and can also be used to provide an end-stop on current trip._x000D_ The device has also two settable speeds, a useful feature for positioning applications._x000D_ Control inputs are present for basic forward, backward and stop commands, as well as limit switch inputs to define end stops_x000D_ This device has also two settable speeds, this can be activated by dedicated input. The same input can be used for analogue speed control signal 0-5V_x000D_ Fault output can indicate current trip, over-current or zero-current conditions. It can also be pulled down to ground to disable the drive, if required_x000D_ C-version includes wo new parameter: freewheel options for release the rotor of motor, selectable pwm frequency (16kHz pwm being inaudible though current handling capacity is reduced)_x000D_ There are two selectable control modes, in continuous mode the motor runs as long as the control is active, in impulse mode it will operate from a momentary command_x000D_ Special settings are also available for start-up kick and auto reverse_x000D_ For parameters setting there are 3 options: EM-236 interface unit, EM-268 with Menthol-Lite PC-program and EM-326 with Menthol-App application for smartphone._x000D_ Features and Benefits_x000D_ 24-48Vdc, 7-10A continuous, 20-25A peak_x000D_ Speed, direction, current limiting, soft start/stop and auto-reverse control_x000D_ Limit switch inputs for end of travel_x000D_ Compact and DIN rail mountable_x000D_ Compact with high current output_x000D_ Current limit_x000D_ Zero current limit_x000D_ Overvoltage brake_x000D_ Speed setting_x000D_ Flexible control inputs_x000D_ Impulse / continuous mode_x000D_ DIN rail mountable_x000D_ Digital parameter - C-version replaces A and B versions_x000D_ C-firmware can be loaded B ver. card_x000D_ C.version available with Molex connector_x000D_ Current limit setting input ( new )_x000D_ Freewheel options ( new )_x000D_ * Continuous current output when ambient temp is <50°C_x000D_ 12-24Vdc version drive =_x000D_ 15A at 100% speed / 10A at 5-99% speed pwm=2kHz_x000D_ 10A at 100% speed / 5A at 5-99% speed pwm=16kHz_x000D_ Peak ( 5s.) 30A at 2khz pwm and 25A at 16kHz pwm_x000D_ Small size_x000D_ High current output_x000D_ Current limit_x000D_ Zero current limit_x000D_ Overvoltage brake_x000D_ Speed setting_x000D_ Flexible control inputs_x000D_ Impulse / continuous mode_x000D_ Rail base mountable_x000D_ Digital parameter setting_x000D_ 48V version of EM-241C_x000D_ Current limit setting input ( new )_x000D_ Freewheel options ( new )_x000D_ 2 or 16kHz PWM freq. ( new )_x000D_ Prog ver C-v1.5_x000D_ Eight input logic option_x000D_ Overvoltage range increased_x000D_ Analog speed input range set
