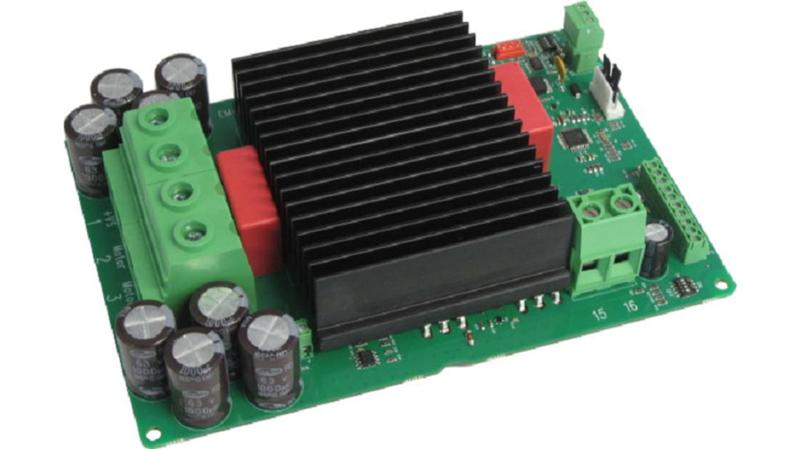

EM-282-D Electromen OY 1.5 kW DC Motor Controller, 12 → 48 V, 1 Phase, 100 A, PWM, Speed Controller Function, 60 V

The Electromen OY DC motor controller is designed to work with DC-motor in applications where a variety of special functions and settings are needed. It requires supply voltage from 12 to 48Vdc. This controller has an adjustable acceleration and deceleration ramps enabling the smooth starts and stops. Adjustable current limit protects motor against overcurrent. The FW and BW inputs control the forward and backward run. STOP input is to stop the motor but there are also available individual limit inputs for FW and BW direction end stops that will cause a motor shut-down. SPEED-2 input activates the pre settable speed-2, but it can also be set for use as an analogue speed control input. FAULT terminal operates same time as an input and output. Fault line is internally pulled, but will be pulled down in overheat or conditionally also in current trip situation._x000D_ For motors up to 1.5kW_x000D_ High current output_x000D_ Brake load output_x000D_ Zero-current limit_x000D_ Speed setting/adjustment_x000D_ Flexible control inputs_x000D_ Impulse/continuous mode_x000D_ Rail base mountable_x000D_ Digital parameter setting_x000D_ C versions program_x000D_ 2/16kHz PWM frequency options_x000D_ Freewheel options_x000D_ Auto reverse option_x000D_ Running indication options_x000D_ Expanded input logic options_x000D_ CE-tested for industrial environment
