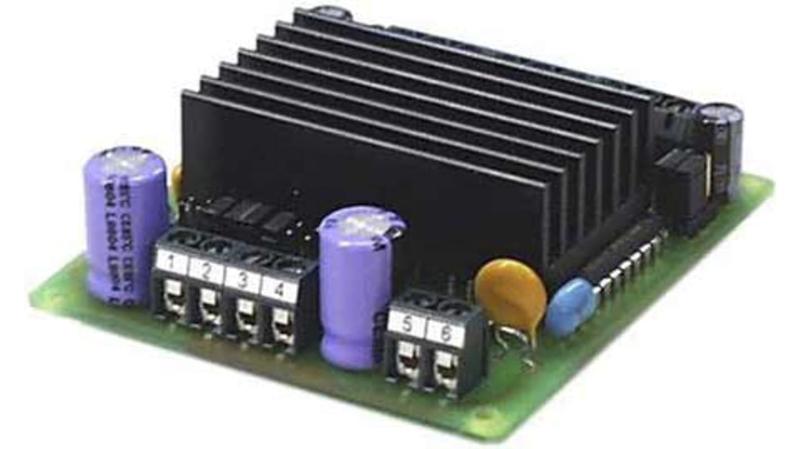

EM-314 Electromen OY DC Motor Controller, 12 → 35 V dc, 6 A, 35 V dc

Electromen - EM-314 STEPPER MOTOR CONTROLLER, 12-24 V DC, 6A_x000D_ The EM-314 is a micro stepping stepper motor controller using bipolar-chopper control. The bipolar operation principle suits most stepper motors and provides the best torque control.The micro stepping function also enables great performance at low rpm._x000D_ The stepping and current regulation is synchronized giving a smooth and quiet operation_x000D_ There are 7 different stepping options to choose from, ranging from full to 1/64-step operation, this provides various possibilities for different speed applications._x000D_ The controller has its own auxiliary oscillator, which can be used for pre-set speed commands - the pre-set speeds can be activated by using 4 digital function inputs_x000D_ The oscillator features an acceleration ramp function, which allows frequencies to be altered for smooth control_x000D_ The drive will ensure that the motor will start up reliably at higher frequencies and shift to desired velocity without speed dropping_x000D_ The auxiliary oscillator incorporated into the unit offers pre-set operational sequences - each sequence is a movement with speed, direction and distance (as steps)_x000D_ The pre-set sequences can be selected with the 4 digital inputs_x000D_ All the inputs are activated with positive logic commands (4-30V), control can also be achieved with TTL-logic level commands_x000D_ For parameters setting there is 3 options: EM-236 interface unit, EM-268 with Menthol-Lite PC-program and EM-326 with Menthol-App application for smartphone_x000D_ Features and Benefits_x000D_ 12-24Vdc, 6A_x000D_ Micro stepping 1, 1/2 , 1/4.....1/64 step options_x000D_ Option to use external step input or pre-set sequences_x000D_ 4 inputs for selecting pre-set sequences each with speed, direction & position_x000D_ Compact and DIN rail mountable_x000D_ Bipolar chopper control_x000D_ 1, 1/2, 1/4.....1/64 steps_x000D_ Four pre-set function inputs_x000D_ PNP or TTL control_x000D_ Quiet operation_x000D_ Acceleration and deceleration ramps_x000D_ DIN rail mountable_x000D_ Bibolar chopper_x000D_ 1,1/2,1/4.....1/64steps_x000D_ Four preset function inputs_x000D_ PNP or TTL control_x000D_ Quiet run current control_x000D_ Acceleration / deceleration ramps_x000D_ DIN-rai lbase mountable
