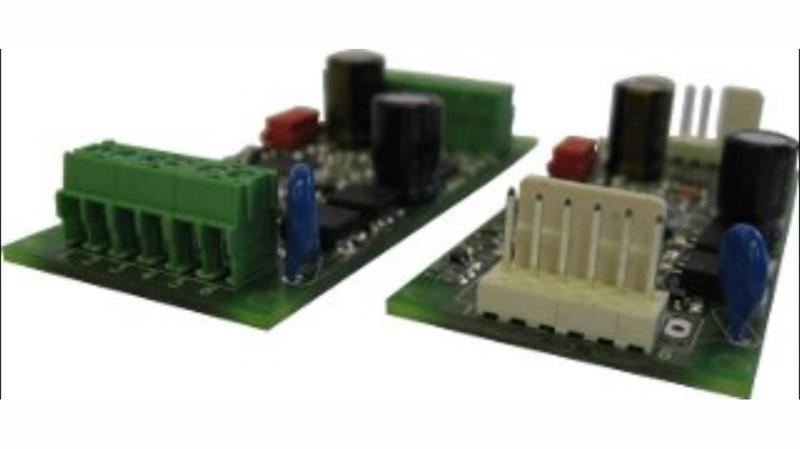

EM-324-SAF Electromen OY DC Motor Controller, 10 → 35 V, 4 A, 35 V

Electromen - EM-324SAF DC MOTOR POSITIONING CONTROLLER, 12-24 V, 4A_x000D_ The EM-324-SAF is a positioning driver to be used with DC-motors, the solid state power stage operates with high efficiency using FET-transistors.Control signal can be a a voltage, 0-11V, or current from 0-20mA. Analogue feedback signal can be in the range from 0-11V._x000D_ The drive also supports potentiometer feedback and has auxiliary voltage outputs of 5.5V to excite the potentiometer._x000D_ The maximum accuracy available for positioning is 0.2%, exceeding what is generally required for most actuator positioning applications._x000D_ Movement range can be modified from both end points with switch limit parameters. Current limits and driving speeds can be set individually for both directions._x000D_ Driver includes also many other dynamic adjustment options including: load compensation, dead-zone setting (positioning window), start and stop ramps for a smooth direction change and an adjustable braking zone._x000D_ The on-board LED-light indicates the possible fault situations, the fault signal can be forwarded through the combiport for external use_x000D_ Combiport can also be set to give 'position OK' output or re-transmit current position via analogue voltage output_x000D_ The drive has very low RF emissions and is suitable for use in in critical electromagnetic environments including medical_x000D_ For parameters setting there is 3 options: EM-236 interface unit, EM-268 with Menthol-Lite PC-program and EM-326 with Menthol-App application for smartphone_x000D_ Features and Benefits_x000D_ 12-24Vdc, 4A continuous, 6A peak_x000D_ Set value & feedback input, 0-5V, 0-11V, 0-20mA or potentiometer_x000D_ Positioning accuracy max. 0.2%_x000D_ Speed, direction, current limiting, soft start/stop and range adjustment control_x000D_ Compact and DIN rail mountable_x000D_ Analogue feedback_x000D_ Multiple dynamic settings_x000D_ Solid state power stage_x000D_ One or two pulse feedback_x000D_ Voltage or current control_x000D_ Position accuracy max. 0.2%_x000D_ Flexible set up options_x000D_ 2kHz / 16kHz PWM frequency_x000D_ * 4A at 2kHz / 3A at 16kHz momentary 6A ( Ta<50°C )
